This 50 kW generator is built around the Perkins 1104D-44TG1, a 4.4 L turbocharged diesel engine with ECM speed control. Perkins engines are manufactured to ISO 8528 standards and deliver tight fuel economy under sustained loads, making this unit well suited to continuous duty and prime power applications where runtime and reliability are priorities.

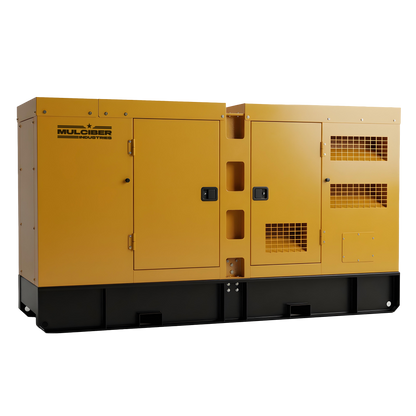

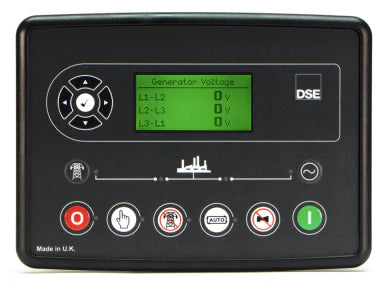

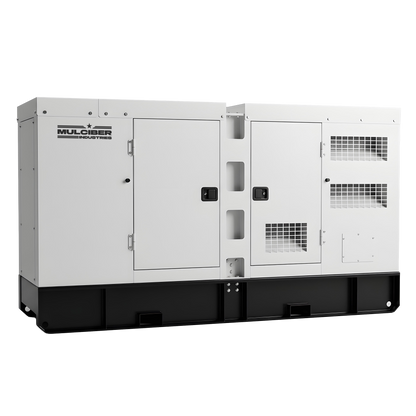

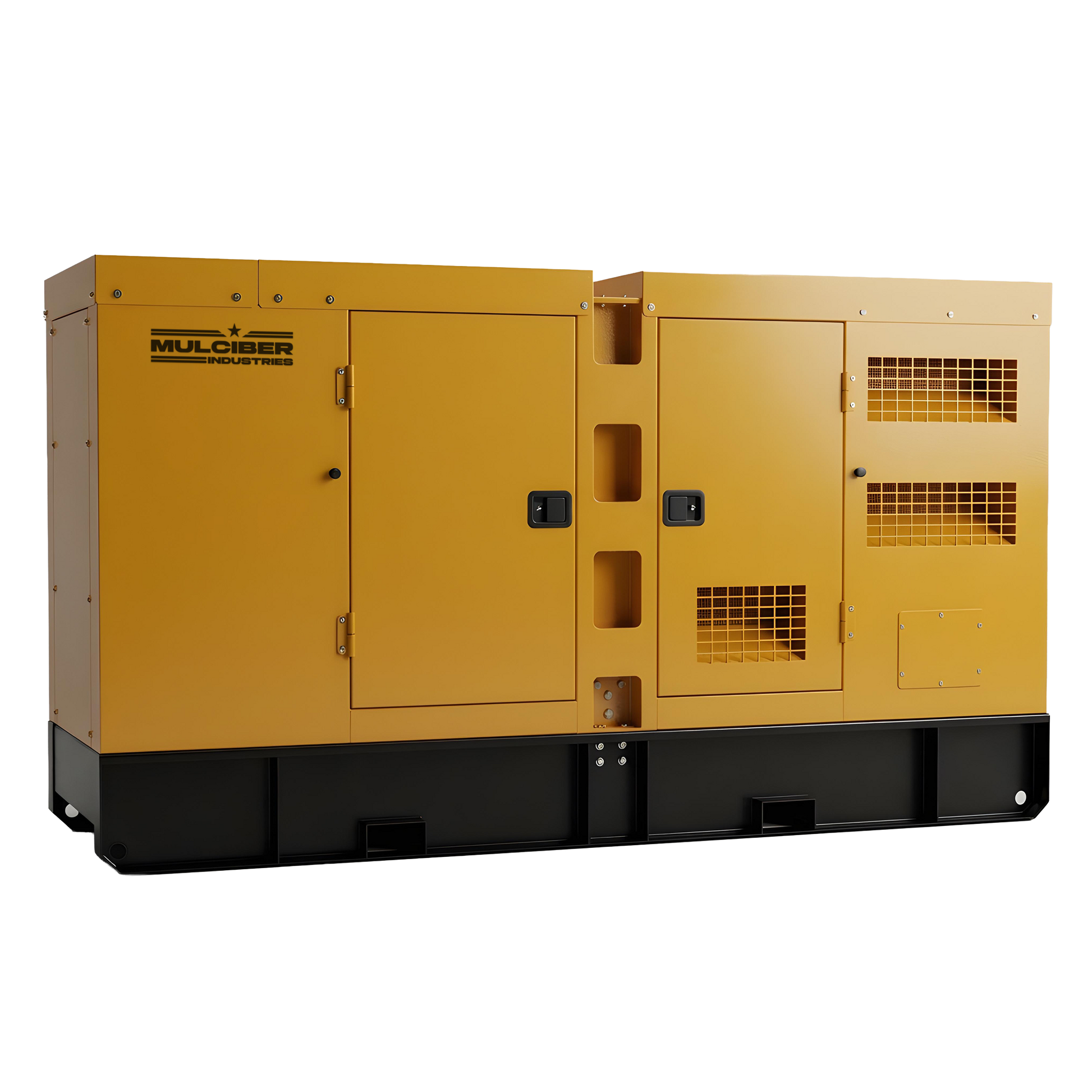

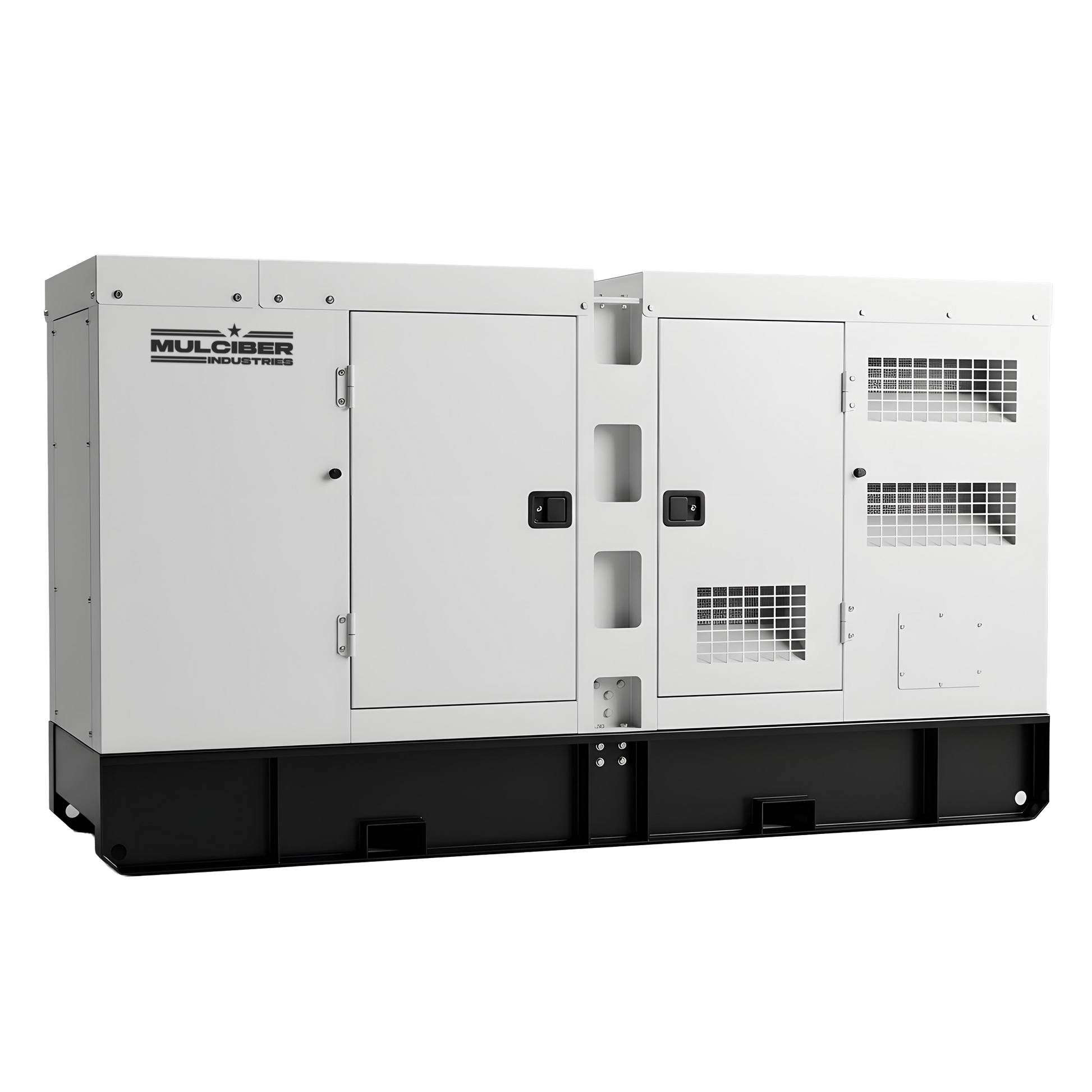

Output is handled by a CSA approved Stamford UCI224 brushless alternator rated at 50 kW, paired with a Deepsea DSE digital control panel for remote monitoring and automated protection. The complete genset ships inside a weatherproof sound attenuated enclosure with an 8 hour dual wall base fuel tank, factory installed Webasto style coolant heater, and DC24V electric start.
Digital Readouts
- Generator voltage
- Output frequency
- Engine speed
- Battery voltage
- Engine hours run
Fault Indicators
- Overspeed/underspeed
- Emergency stop
- Low oil pressure
- High water temperature
- Failure to start
- Battery charger failure
Auto Shutdown Triggers
- Low engine oil pressure
- High engine water temperature
- Overspeed/underspeed
- Failure to start after three attempts
Prime Power Rating
Continuous operation at variable load with no annual hour restriction. Permits 10% overload capacity for one hour in every twelve hour cycle.
Standby Power Rating
Emergency backup operation at variable load during utility outage. Rated for the duration of the power interruption. No overload permitted.
