Request a Quote
Once you request a quote, we will follow up with current availability, configurations, and delivered pricing.

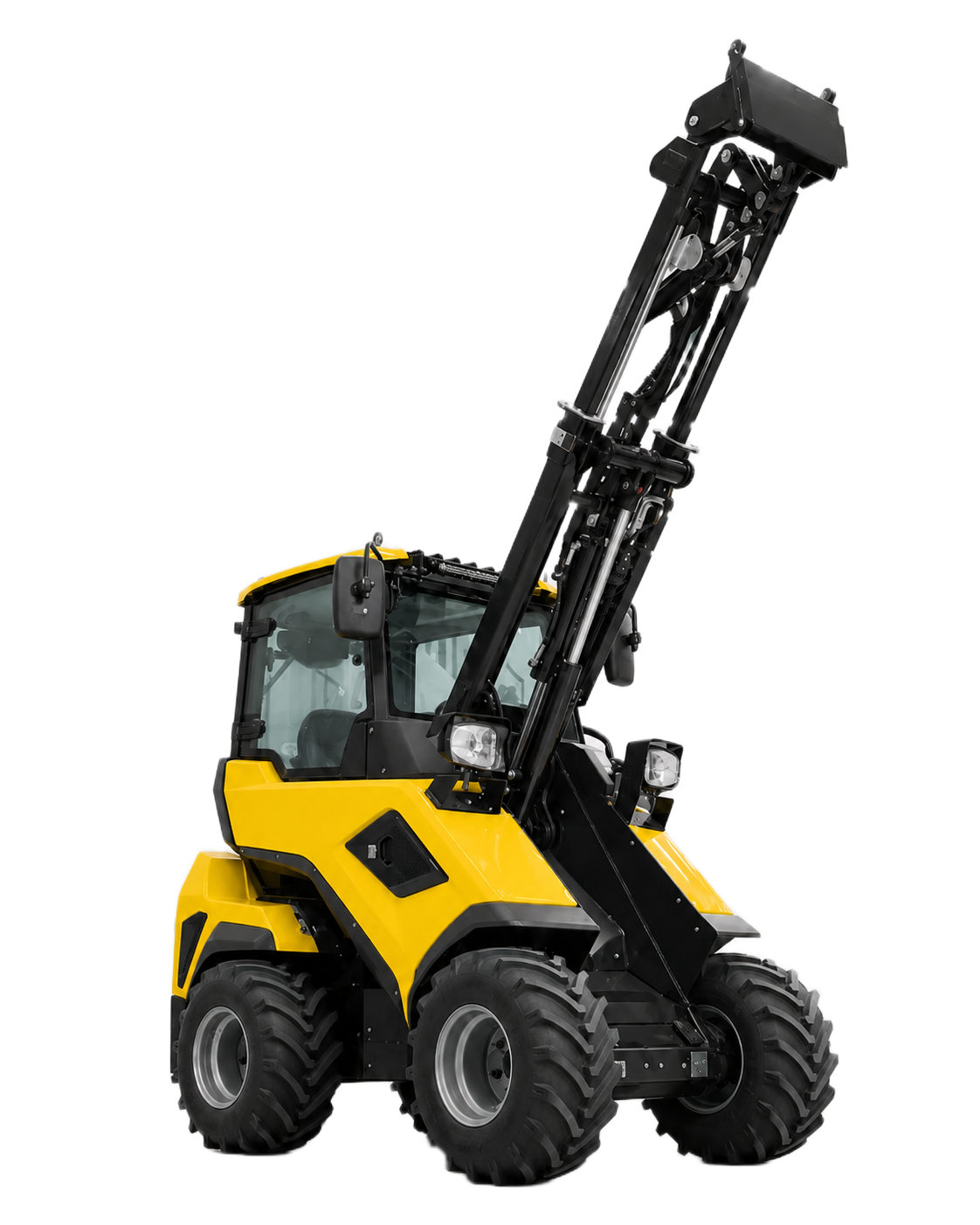

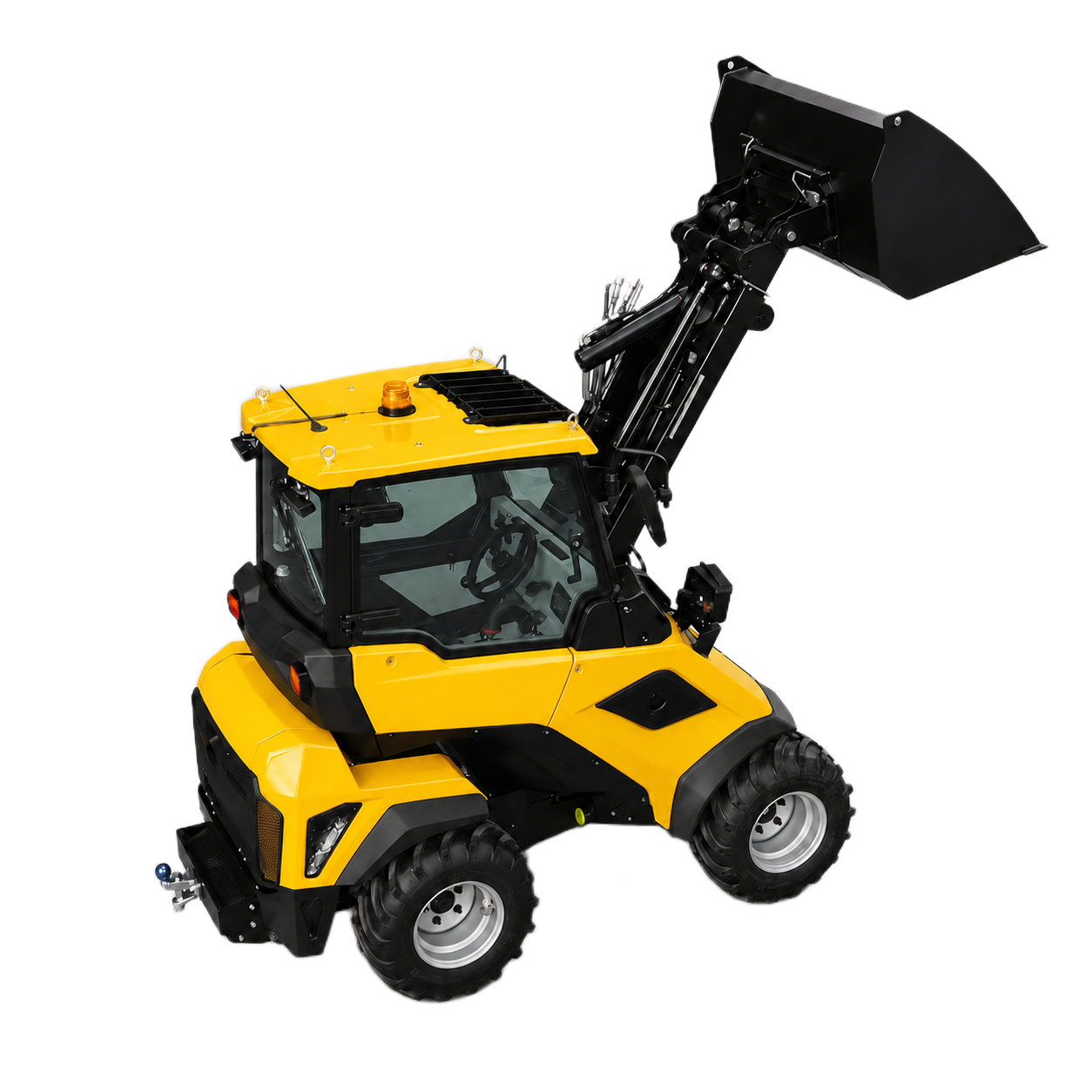

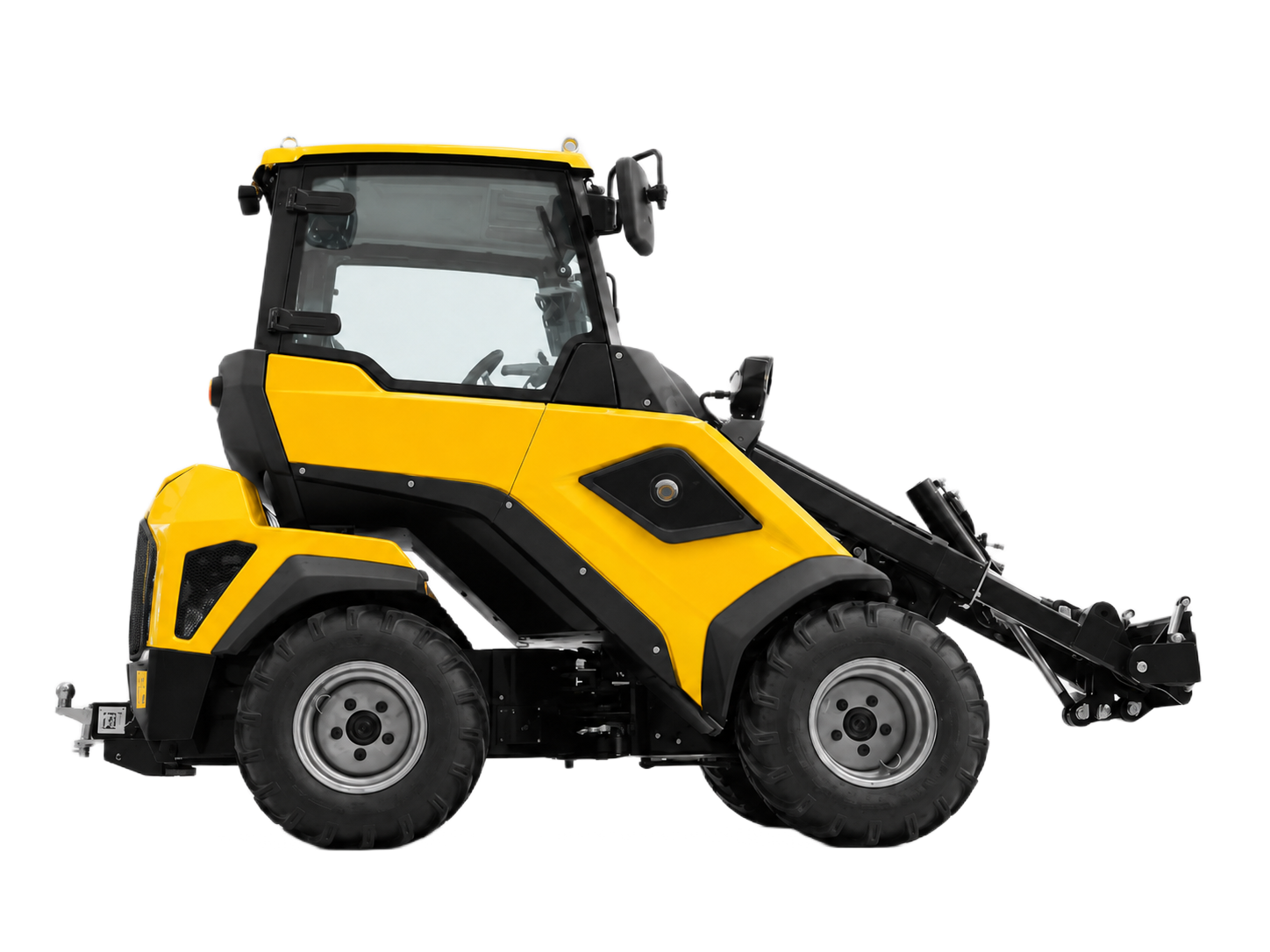

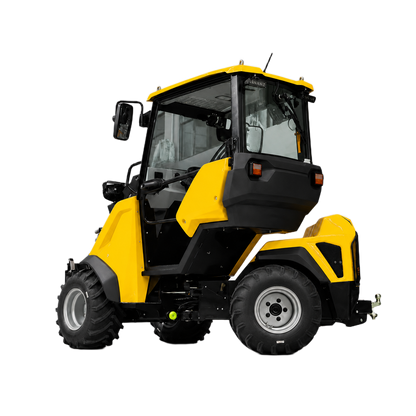

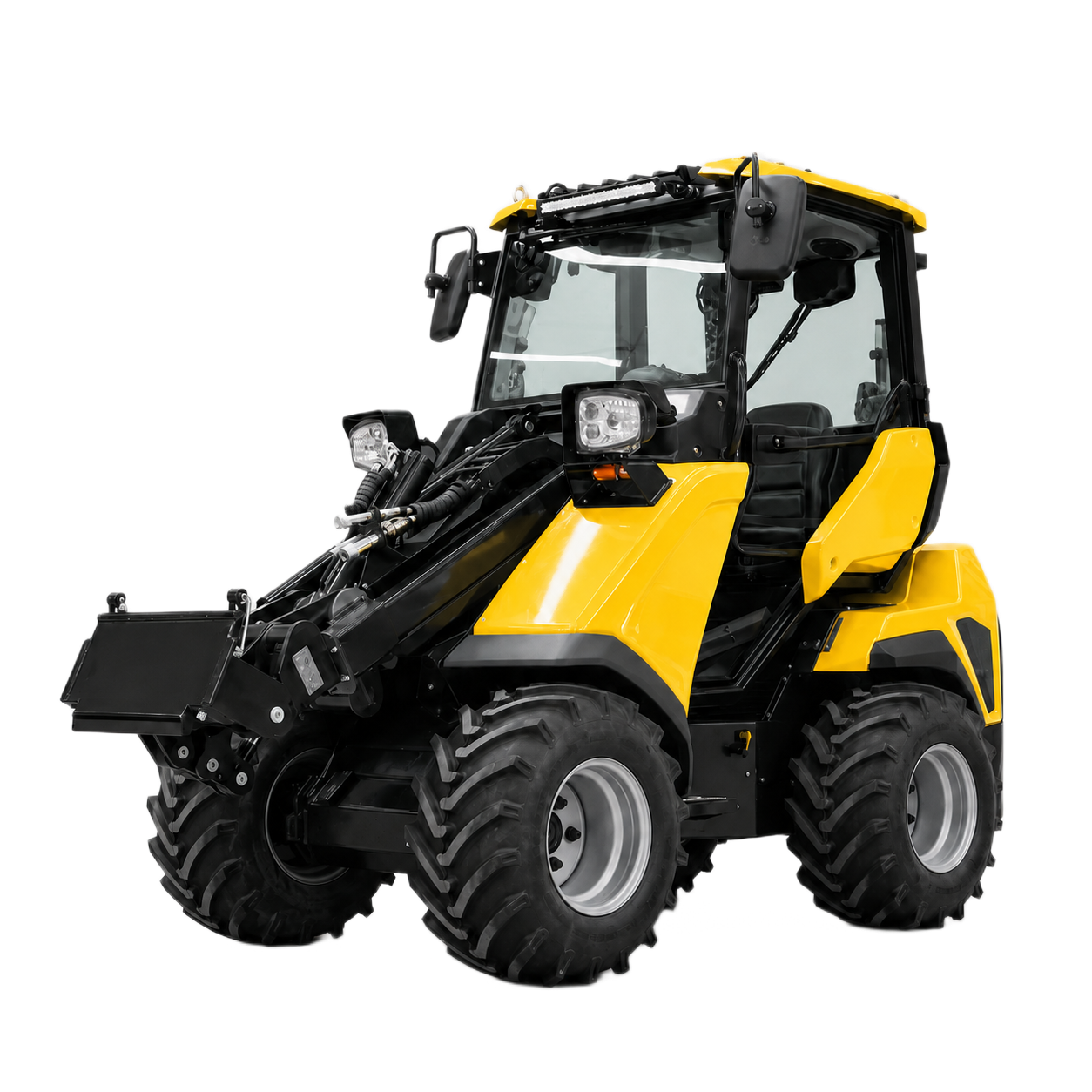

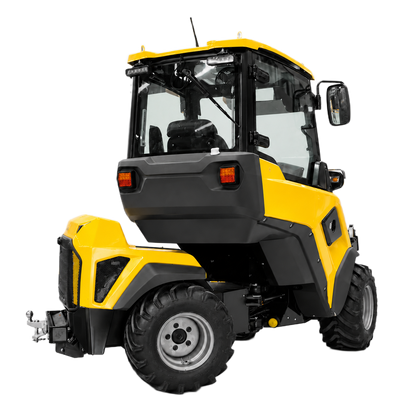

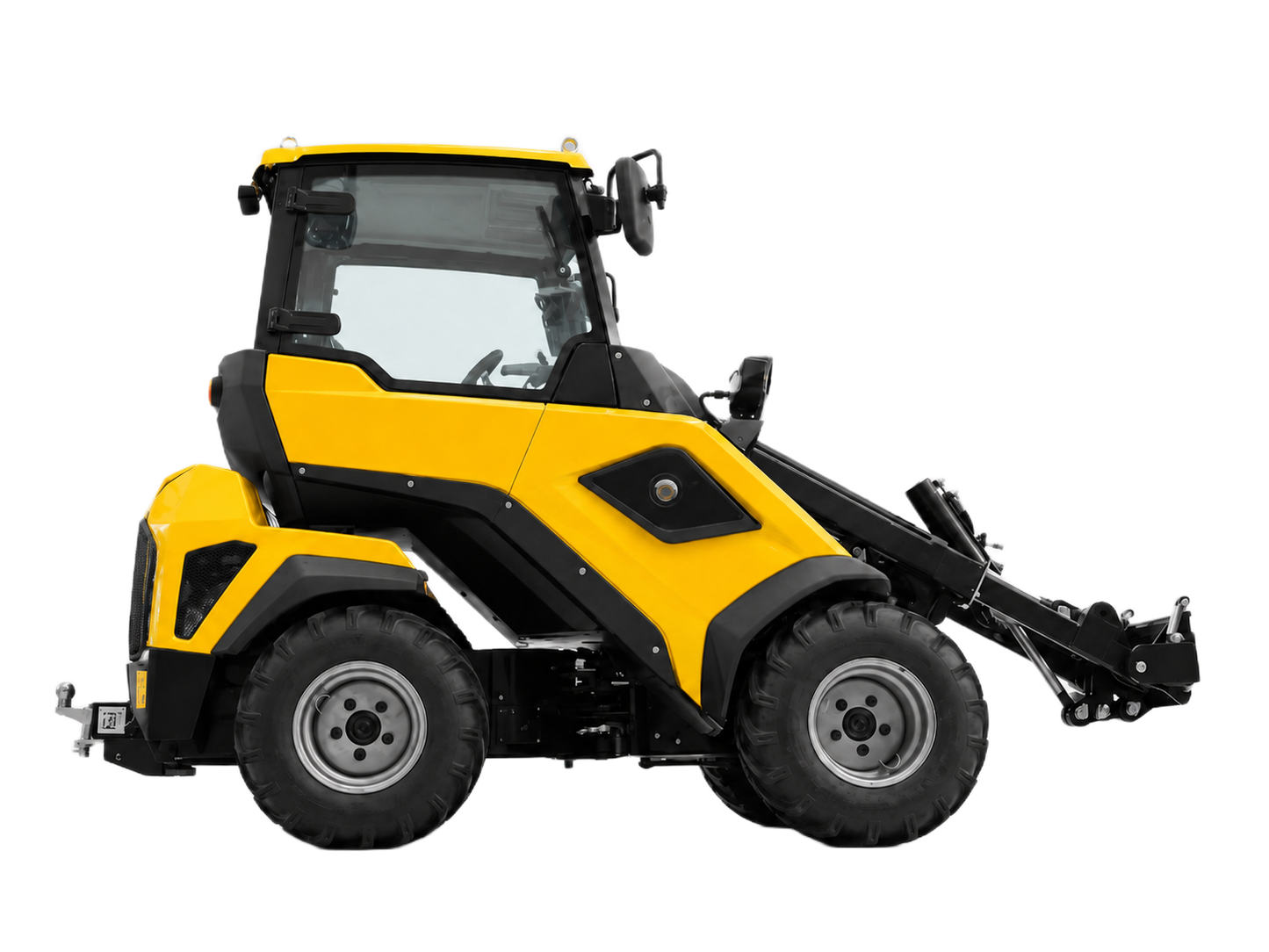

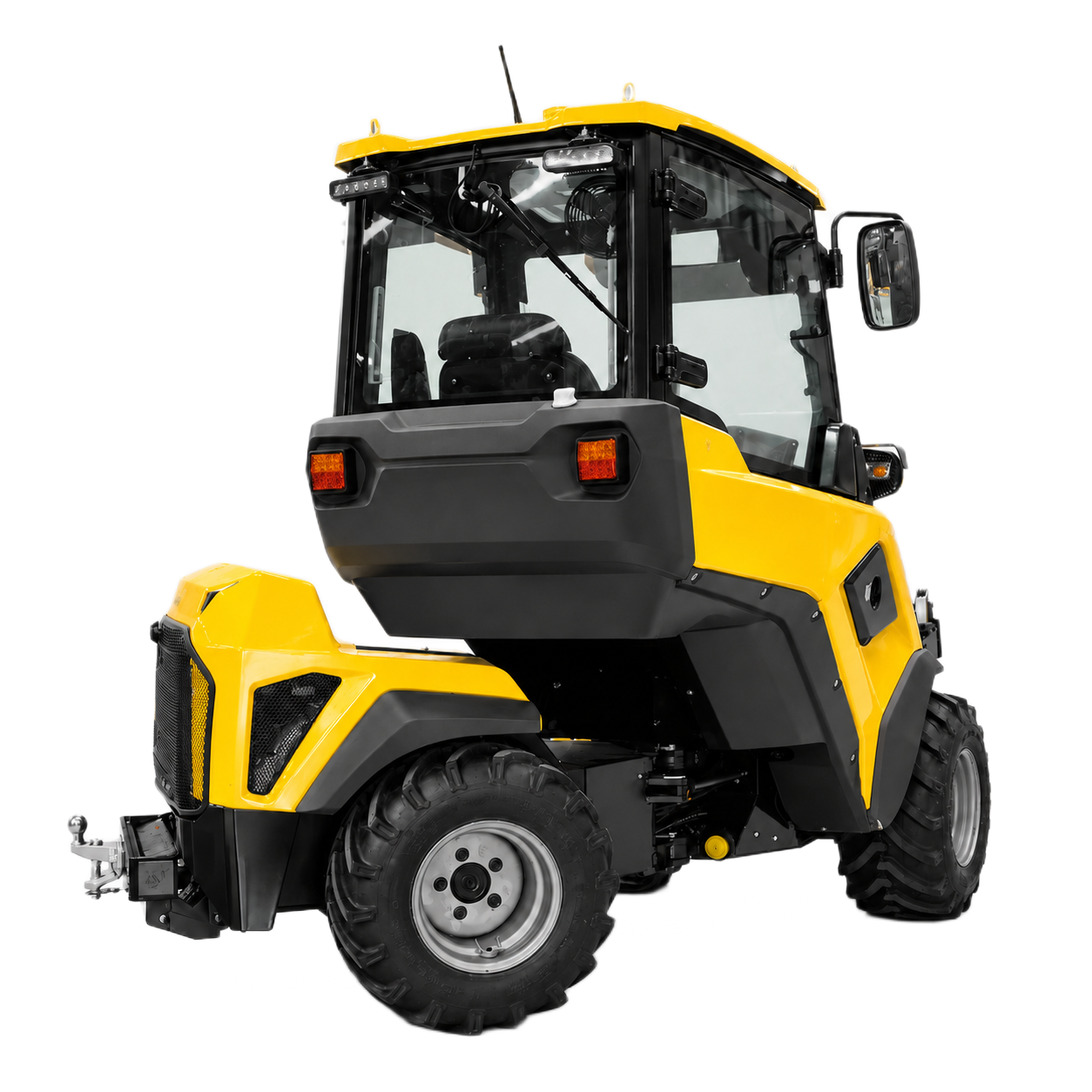

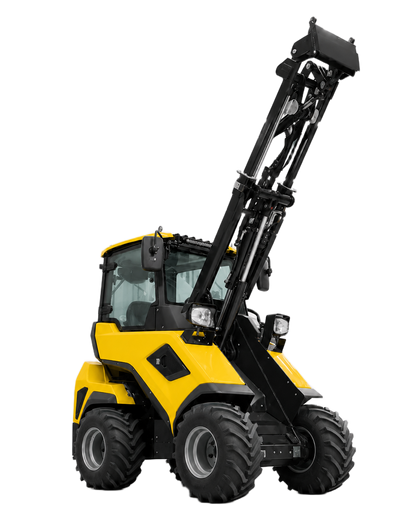

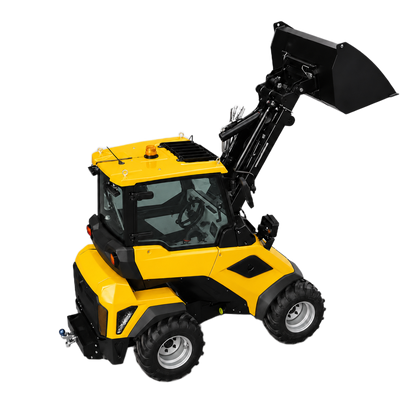

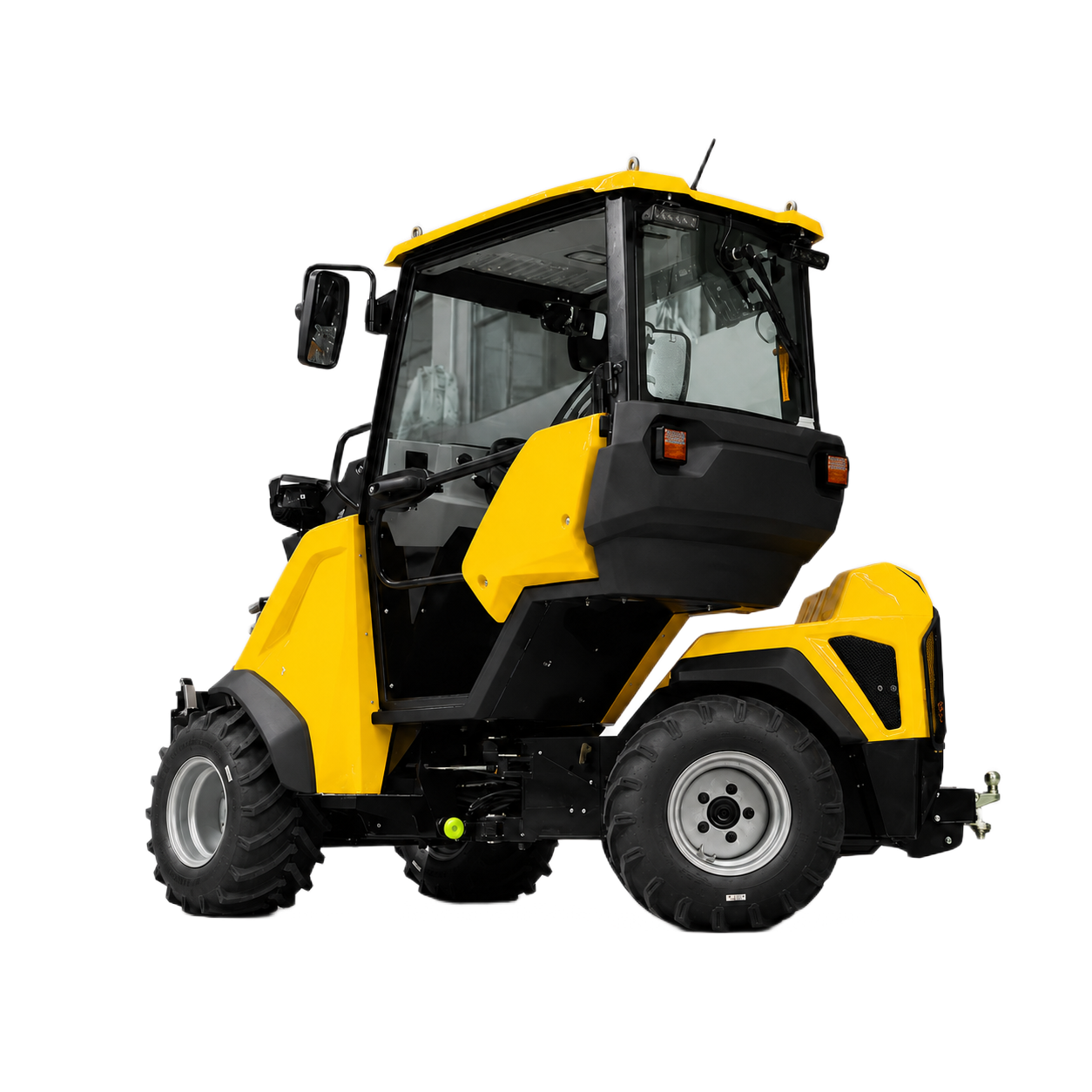

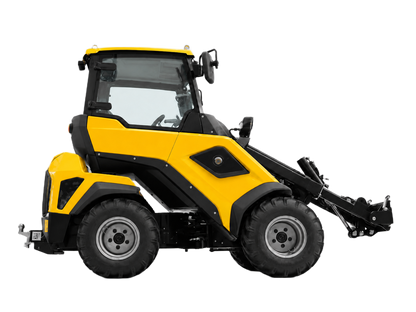

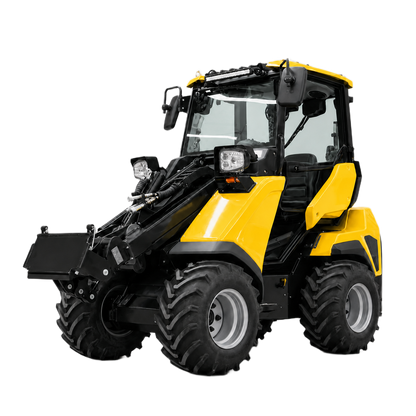

The 1.05 ton Telescopic Wheel Loader is a telescopic wheel loader configured for loading, material movement, property work, and contractor support.
Mulciber can review capacity, attachment requirements, hydraulic needs, tire package, operator environment, and site conditions before final configuration.
1.05 ton class tipping load
18.2 (24.8)
1050
2630x1250x2000
Equipment Package Ratings & Configuration
Model
MTW105-D
Equipment Class
1.05 ton Telescopic Wheel Loader
Capacity Class
1.05 ton class tipping load
Performance
Max Loading Capacity / Tipping Load (kg)
1050
Net Weight (kg)
1600
Max Driving Speed (km/h)
13
Engine
Engine Power kW (HP)
18.2 (24.8)
Cooling
Water
No. of Cylinders
3
Rated Speed (r/min)
3000
Dimensions
Max Lifting Height - shovel pivot pin (mm)
3060
Overall Dimensions L x W x H (mm)
2630x1250x2000
Min Turning Radius - Outside (mm)
2050
Min Turning Radius - Inner/Outer (mm)
800/2050
Spec Sheet Download
Spec Sheet
Options, add-ons, and custom configurations available.
+1 (888) 255-0072
All images are for illustration purposes only. Actual product may vary. Specifications, configuration options, lead time, pricing, and availability may vary by model and selected package. Mulciber will review final requirements with the customer before order acceptance.
