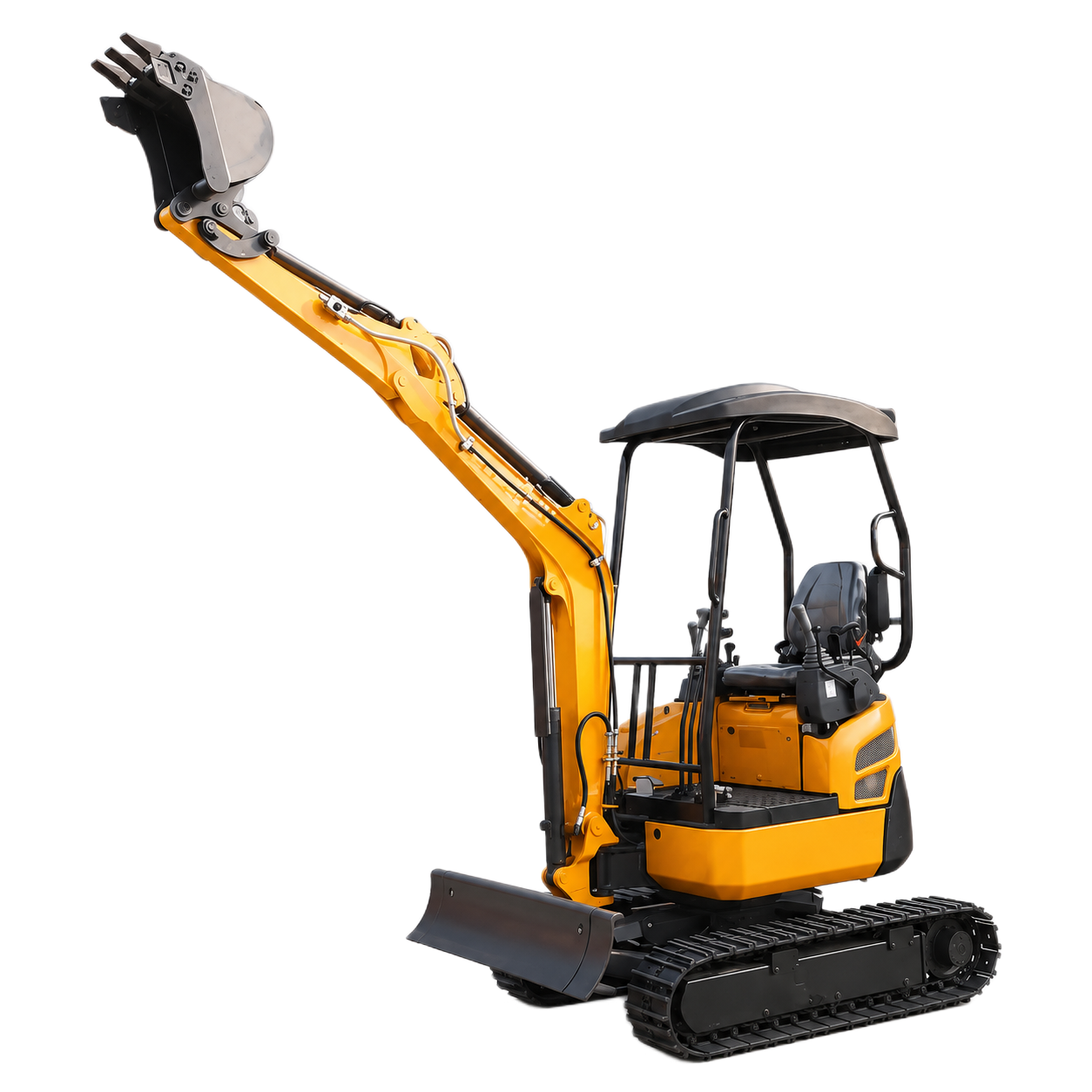

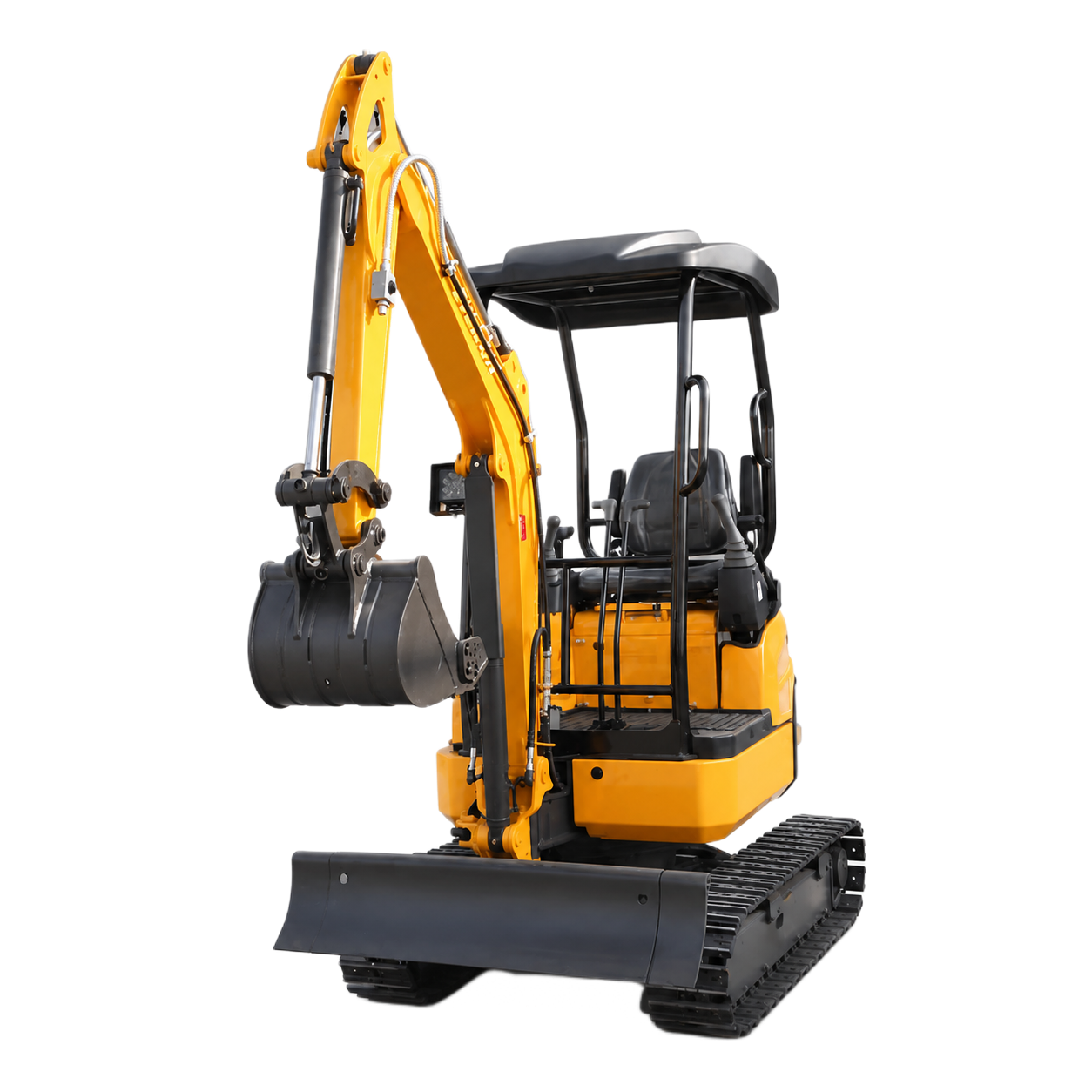

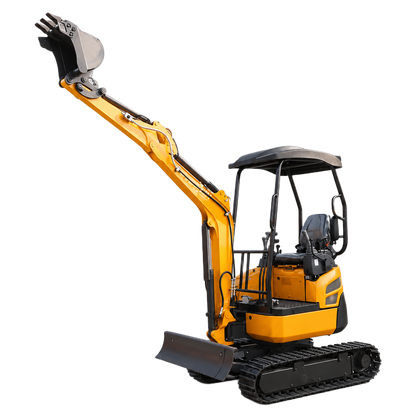

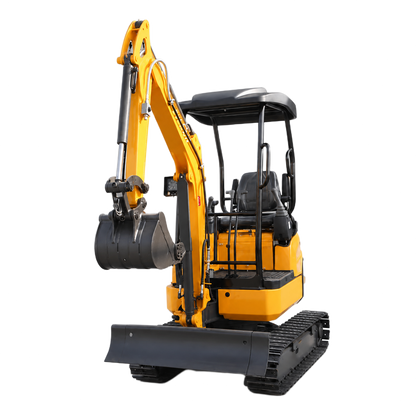

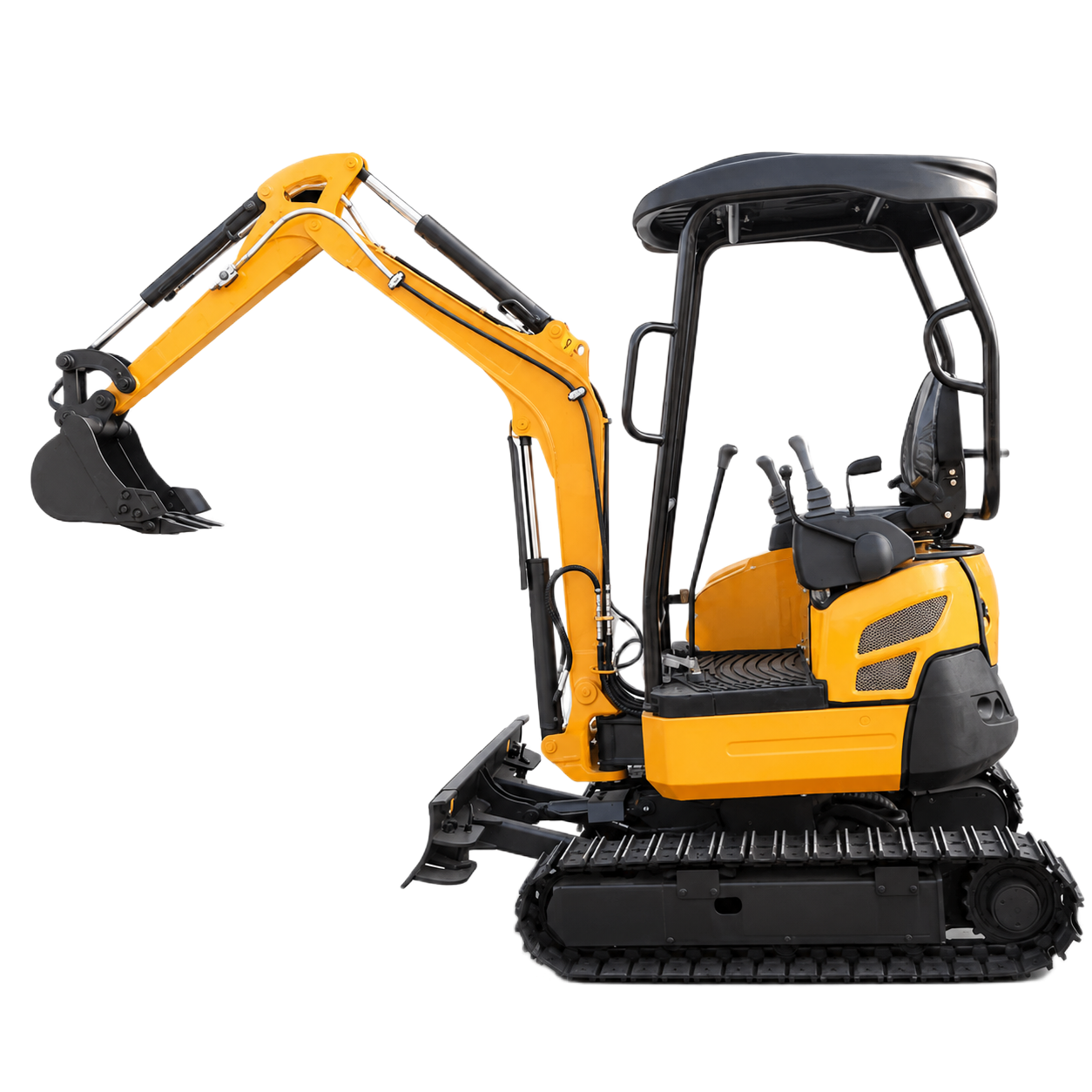

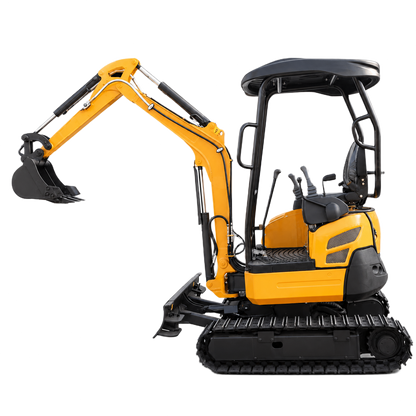

The 2 ton Compact Crawler Excavator is a compact crawler excavator built for contractors, property teams, utility work, and site crews that need a practical digging machine in a maneuverable footprint.
Mulciber can review bucket requirements, hydraulic attachment needs, transport limits, operating conditions, and final configuration before quoting the machine.
2 ton / 2,000 kg operating weight
2000
Equipment Package Ratings & Configuration
Model
MCX20-D
Equipment Class
2 ton Compact Crawler Excavator
Capacity Class
2 ton / 2,000 kg operating weight
Performance
Operating Weight (kg)
2000
Bucket Capacity (m3)
0.05
Bucket Width (mm)
420
Bucket Digging Force (kN)
13.5
Engine
Rated Power (kW)
10
Rated Speed (r/min)
2200
Cylinders
3
Dimensions
Overall L x W x H (mm)
3400x1040x2350
Track Length on Ground (mm)
1590
Chassis Width (mm)
990/1240
Tail Swing Radius (mm)
740
Spec Sheet Download
Spec Sheet
Options, add-ons, and custom configurations available.
