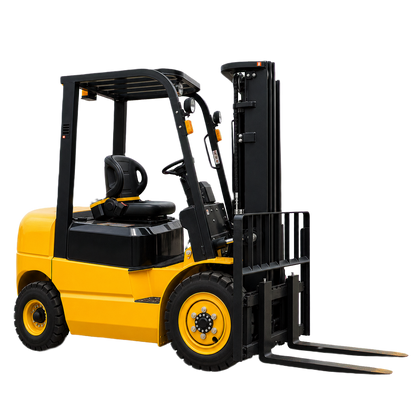

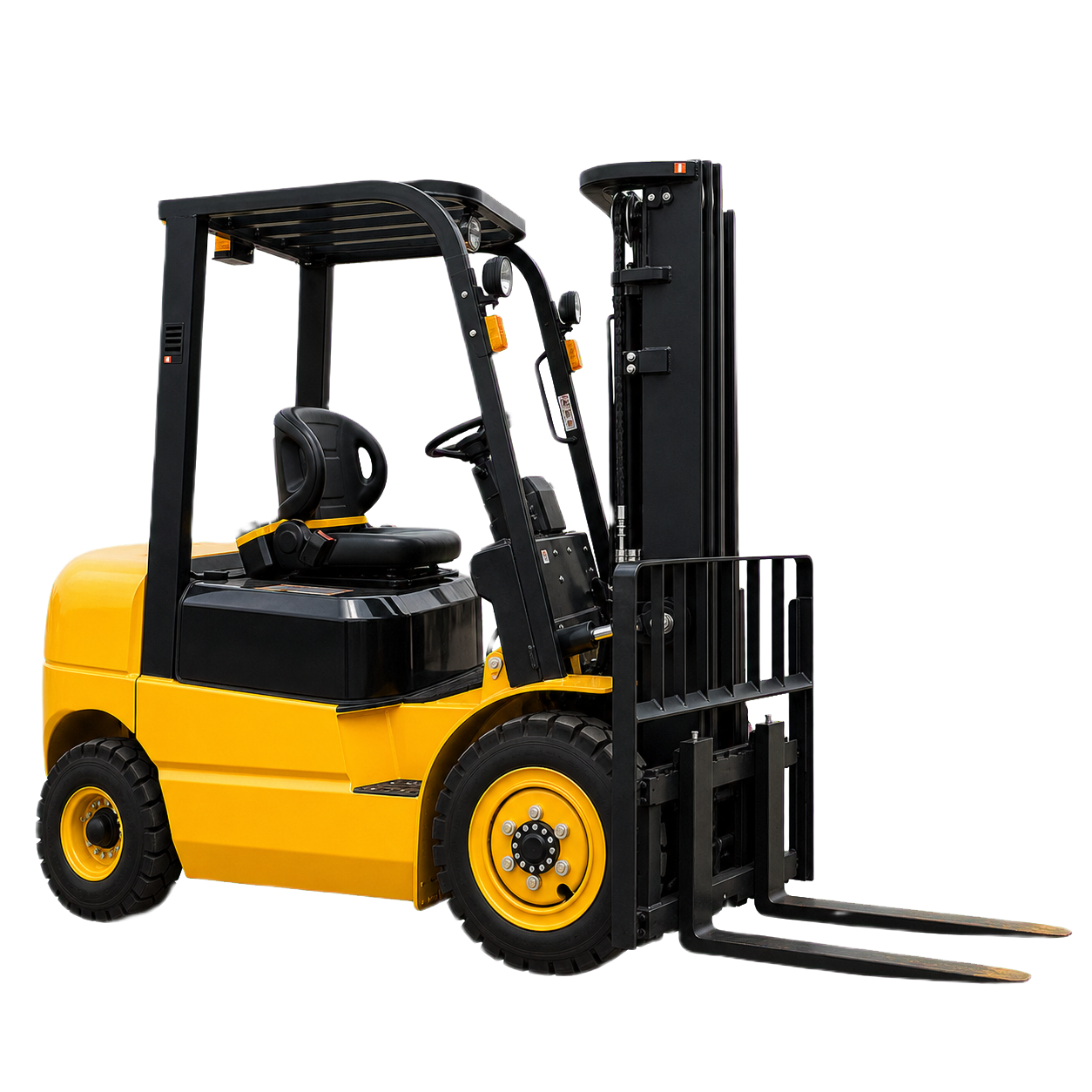

• 3 ton Diesel Pneumatic Forklift transparent product image 1

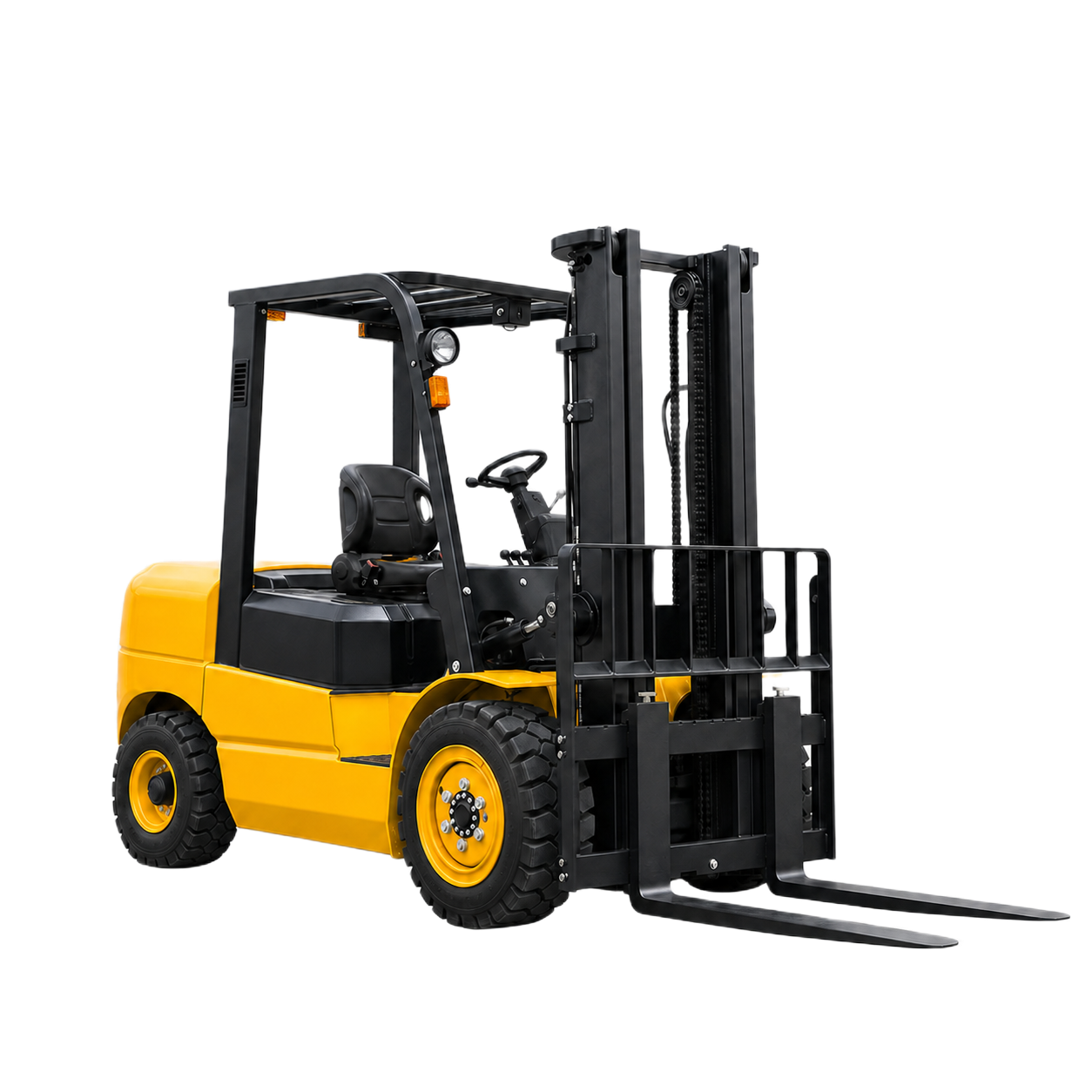

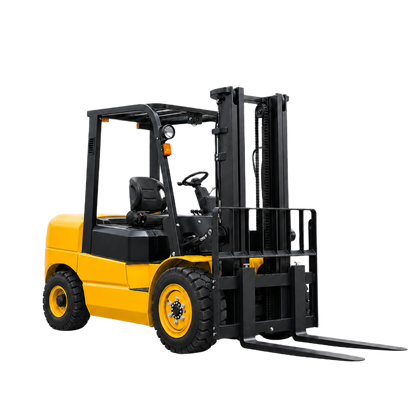

  • 3 ton Diesel Pneumatic Forklift transparent product image 2

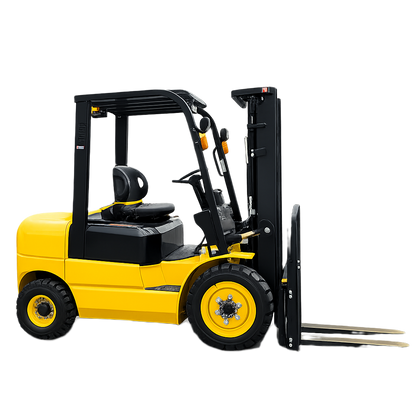

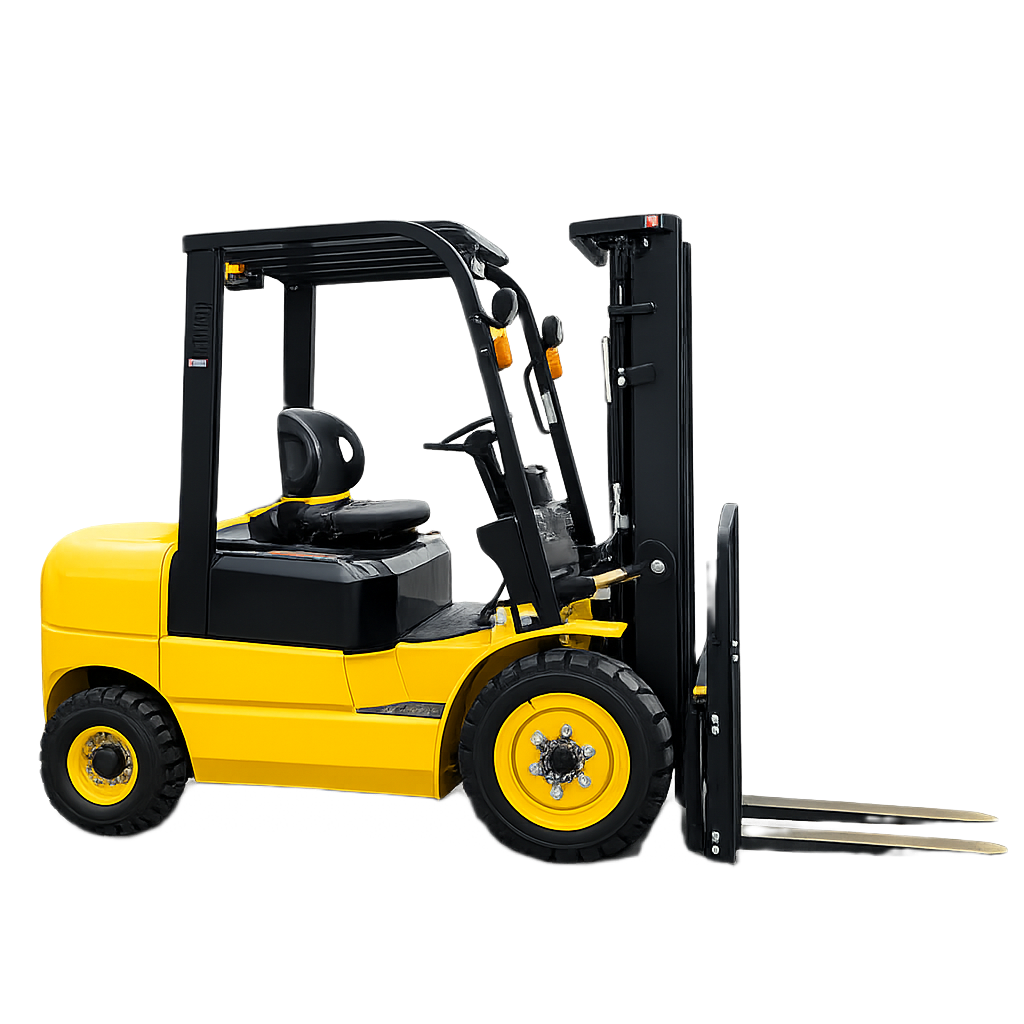

  • 3 ton Diesel Pneumatic Forklift transparent product image 3

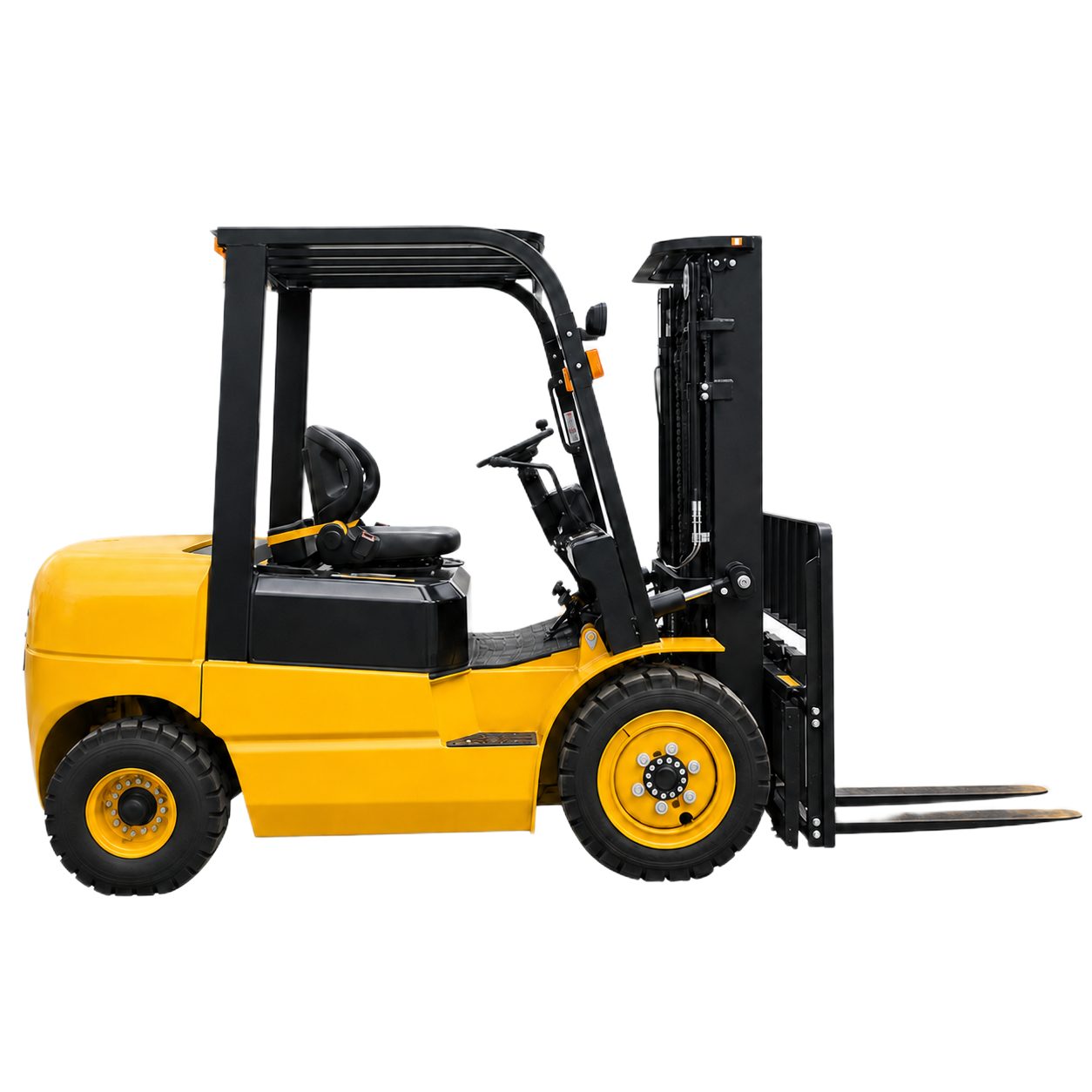

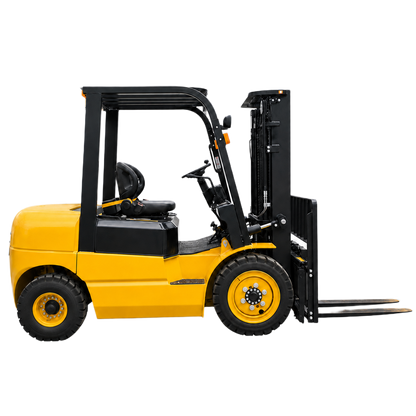

  • 3 ton Diesel Pneumatic Forklift transparent product image 4

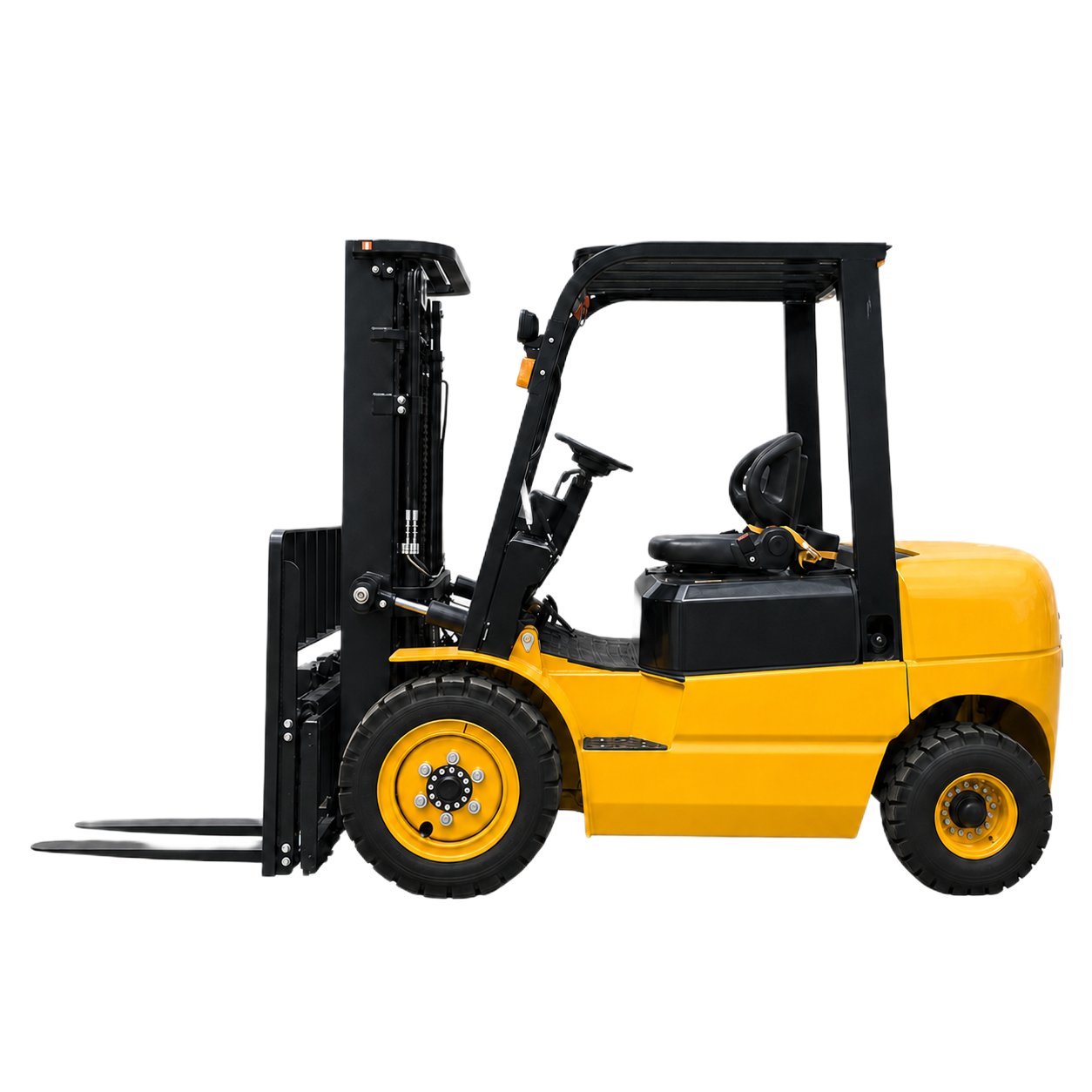

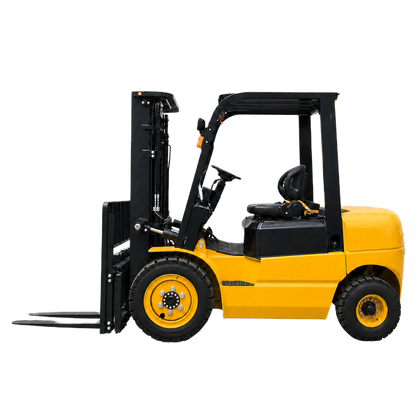

  • 3 ton Diesel Pneumatic Forklift transparent product image 5

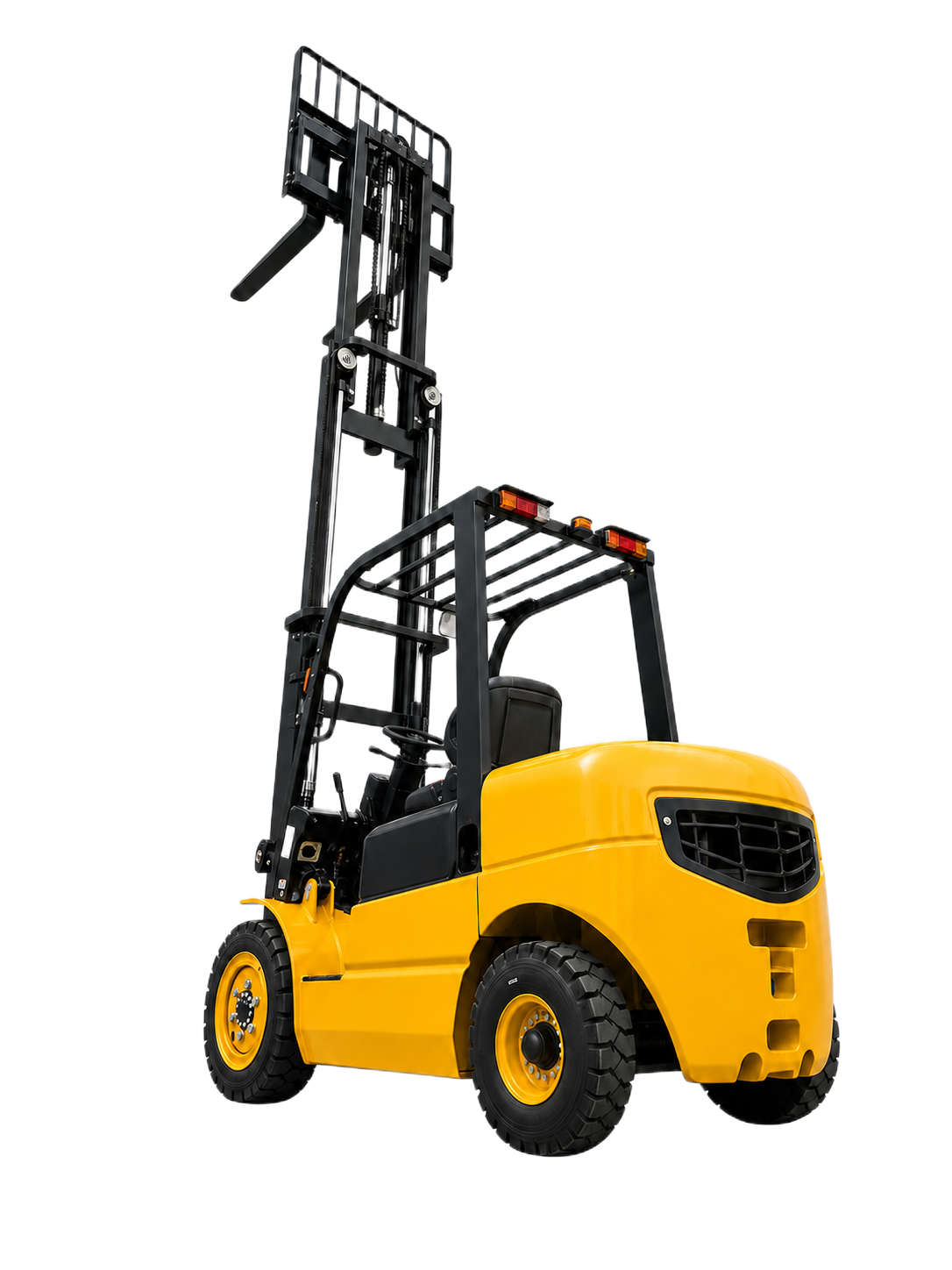

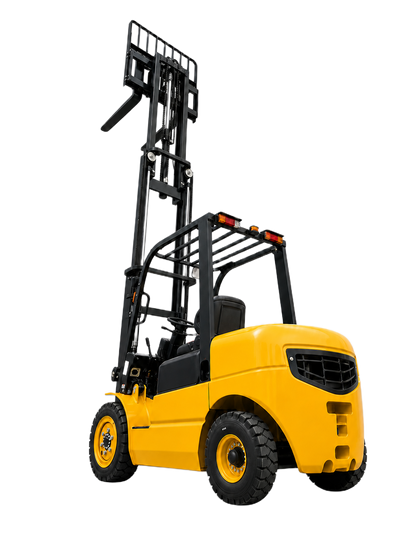

  • 3 ton Diesel Pneumatic Forklift transparent product image 6
1 6

3 ton Diesel Pneumatic Forklift

3 ton Diesel Pneumatic Forklift

Request a Quote
View full details

Request a Quote

Once you request a quote, we will follow up with current availability, configurations, and delivered pricing.

8 - 20 Week Lead Time
Configuration Review & Parts/Service Guidance Included

The 3 ton Diesel Pneumatic Forklift is a diesel pneumatic counterbalance forklift built for shipping areas, warehouse aprons, palletized material handling, and industrial operations that need a practical mid-size counterbalance unit.

This listing highlights the configuration information currently available for customer review. Mulciber can help match lift height, mast type, tire package, fork requirements, attachments, operator features, and site conditions to the intended application.

3 ton / 3,000 kg rated capacity class
Kubota V2607 diesel power package
Pneumatic tire counterbalance platform for yard, dock, and industrial surfaces
Built for pallet handling, outdoor movement, loading zones, and industrial fleet use
Mast, tire, fork, cab, lighting, and attachment configurations available
Application review available through Mulciber sales support
Forklift Package Capacity & Configuration
Model
KDF30-T4
Rated Capacity
3 ton / 3,000 kg
Load Center
500 mm
Lift Height
3,000 mm standard lift height
Free Lift
155 mm
Mast
2-stage basic mast
Forks
1070 x 125 x 45 mm forks
Tires
Pneumatic tires; front 28 x 9-15-14PR, rear 6.50-10-10PR
Lead Time
8 - 20 weeks
Engine & Drivetrain
Engine
Kubota V2607 diesel
Engine Details
38 kW at 2,400 rpm, 174.1 Nm at 1,500 rpm, 2.615 L, 4 cylinders
Transmission
Electro-hydraulic directional transmission, 1F/1R
Fuel Tank
60 L fuel tank
Dimensions & Performance
Dimensions
2,740 mm length without forks, 1,230 mm width, 2,065 mm mast lowered height
Turning / Aisle
2,500 mm minimum turning radius; 4,285 mm minimum right-angle stacking aisle width
Operating Weight
4,300 kg self weight
Travel / Lift Speed
19 / 19.5 km/h travel speed loaded/unloaded; 460 / 485 mm/s lift speed loaded/unloaded
Gradeability
20%
Material Handling Applications
Outdoor Yards & Loading Areas Diesel power and pneumatic tires are well suited for yard surfaces, dock aprons, staging areas, and mixed industrial sites.
Warehouse & Fleet Operations Suitable for palletized goods, receiving, shipping, manufacturing, maintenance, rental fleets, and general counterbalance forklift work.
Configured Around the Job Mulciber can help align the forklift with lift height, load profile, aisle space, tire preference, operator environment, and attachment needs.
Available Configurations Masts, Tires & Attachments

Mast, tire, fork, cab, side-shift, and attachment options are available for application-specific configurations.

Common forklift configurations may include alternate mast heights, triplex/full-free mast arrangements, side shifter, fork positioner, fork length options, solid or non-marking tires, enclosed cab, work lights, safety lighting, camera systems, and load-handling attachments.

Spec Sheet Download
Spec Sheet
Call Now for Spec Sheet
Options, add-ons, and custom configurations available.
+1 (888) 255-0072
All images are for illustration purposes only. Actual product may vary. Specifications, configuration options, lead time, pricing, and availability may vary by model and selected package. Mulciber will review final requirements with the customer before order acceptance.
