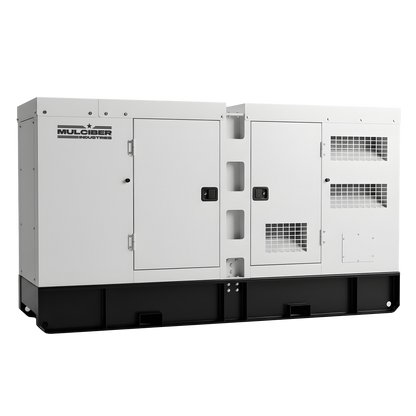

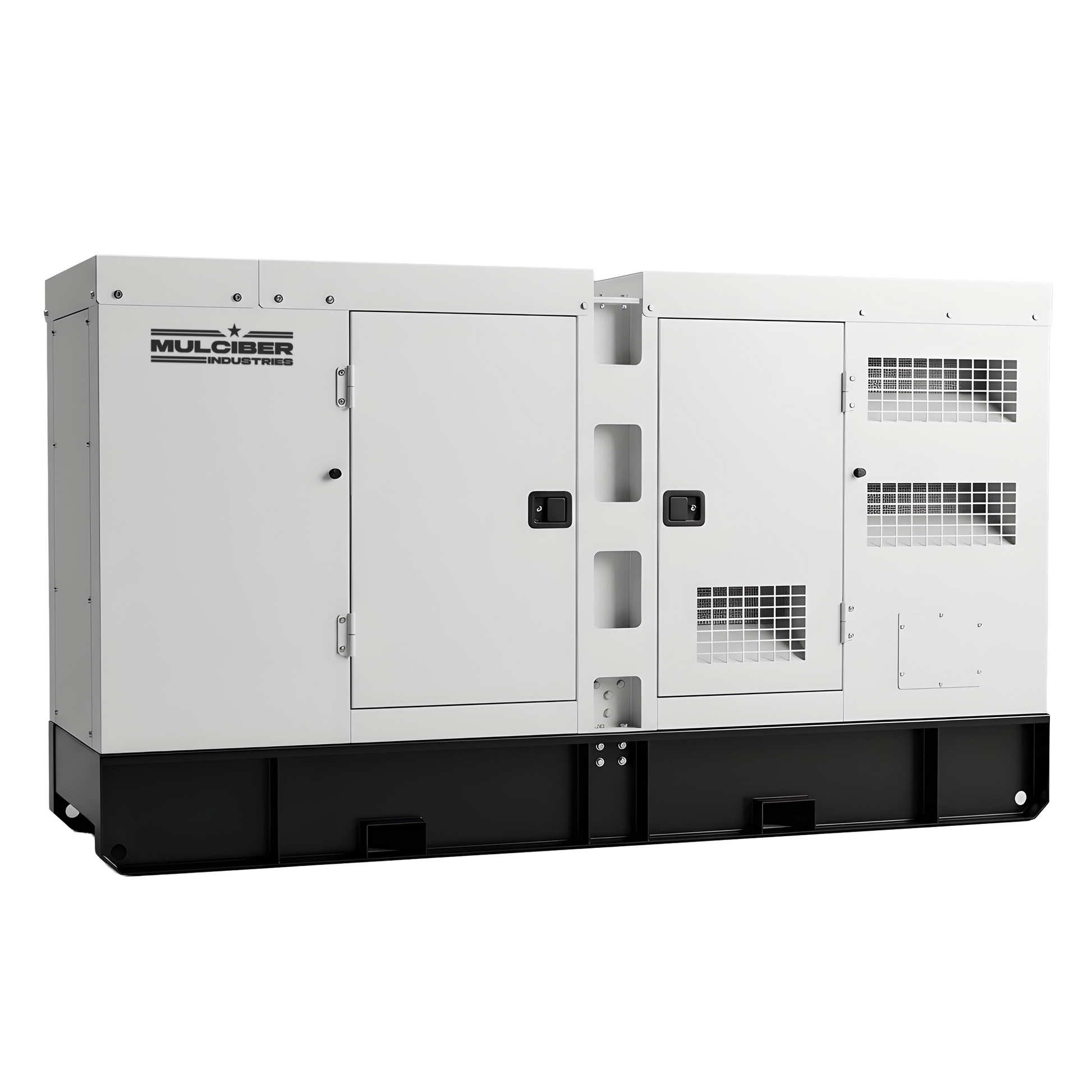

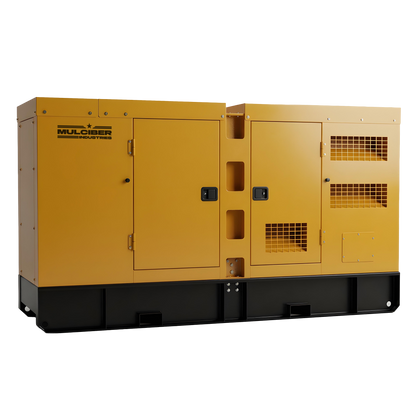

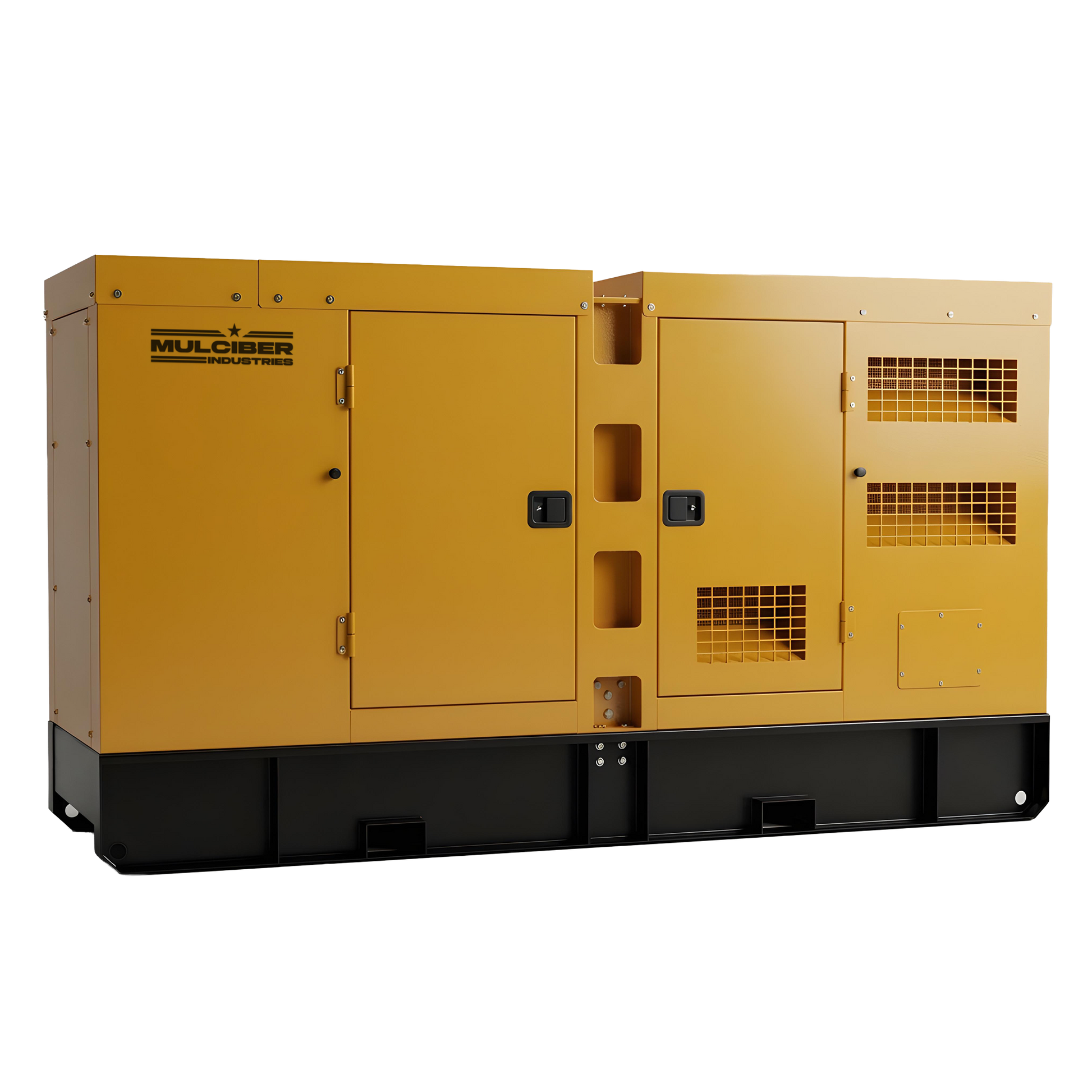

This 30 kW prime power generator is powered by the Yanmar 4TNV98C-GGE, a 3.32 L naturally aspirated diesel engine configured for dependable continuous-duty and backup power applications. Yanmar engines are used in demanding commercial and industrial environments where power availability, serviceability, and clear specification review matter.

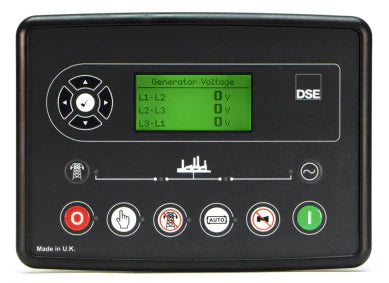

The alternator package includes Stamford alternator options, with the 480V configuration using the S1L2-K model where specified. The genset is paired with a Deepsea DSE digital controller for monitoring and fault protection, and is presented in Mulciber's quote-only generator format so voltage, enclosure, delivery, and site requirements can be confirmed before order acceptance.
Monitoring
- V
- A
- Hz
- kW
- kVA
- kVAr
- PF
- Engine RPM
- Oil Pressure
- Coolant Temp
- Fuel Level
- Battery V
- Run Hours
Communications
- USB
- RS232
- RS485
- CAN Bus (J1939)
- Ethernet (via expansion)
- Modbus RTU
- DSENet
Protection
- kW overload protection
- Reverse power protection
- Unbalanced load protection
- Independent Earth Fault trip
- Charge alternator failure alarm
- Low fuel alarm
- Engine over-speed shutdown
- High coolant temperature shutdown
- Low oil pressure shutdown
Prime Power Rating
Continuous operation at variable load where supported by the engine rating and site conditions. Final sizing, load profile, emissions suitability, and operating assumptions must be confirmed before order acceptance.
Standby Power Rating
Emergency backup operation at variable load during utility outage. Rated for the duration of the power interruption. No overload permitted unless specifically supported by the confirmed engine rating.
