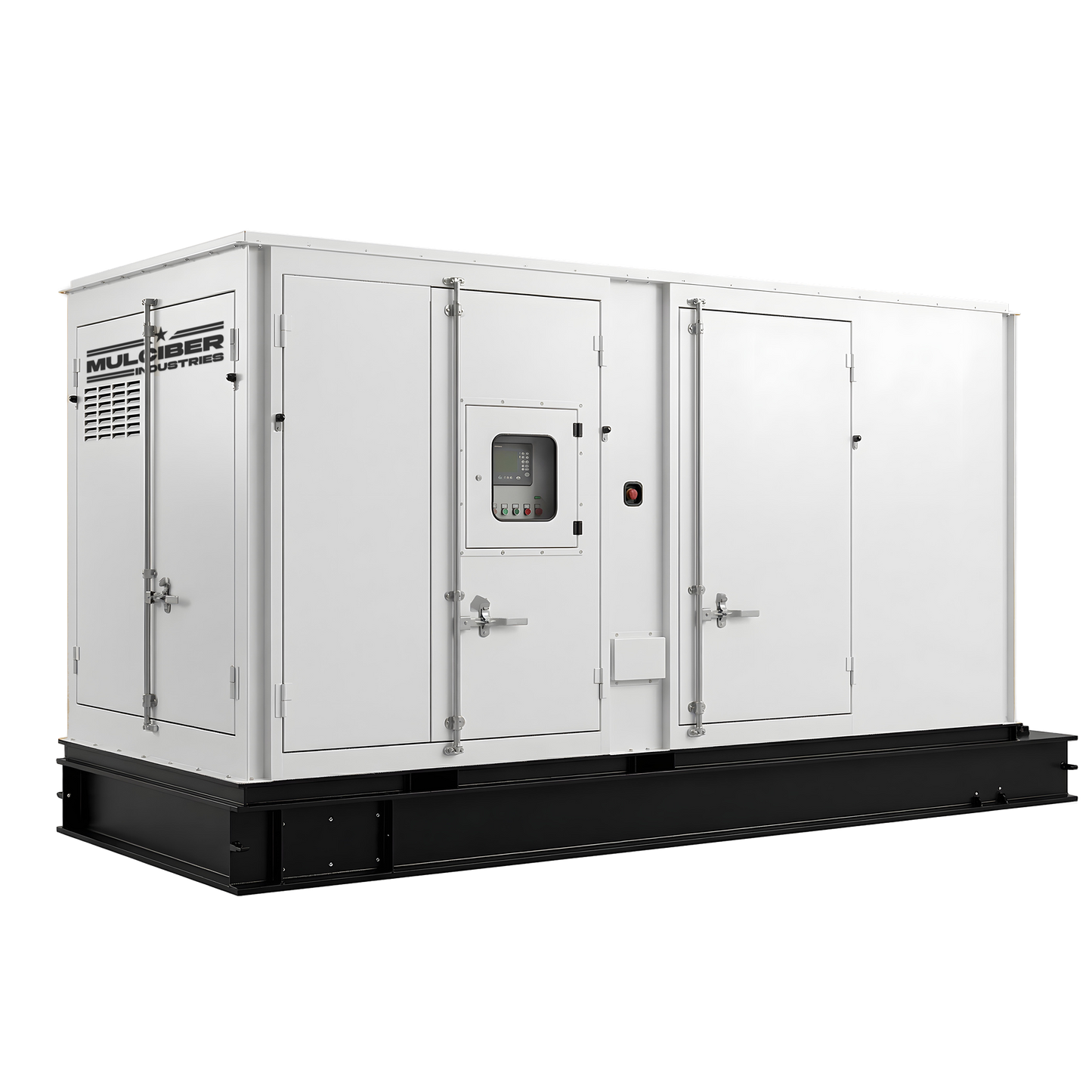

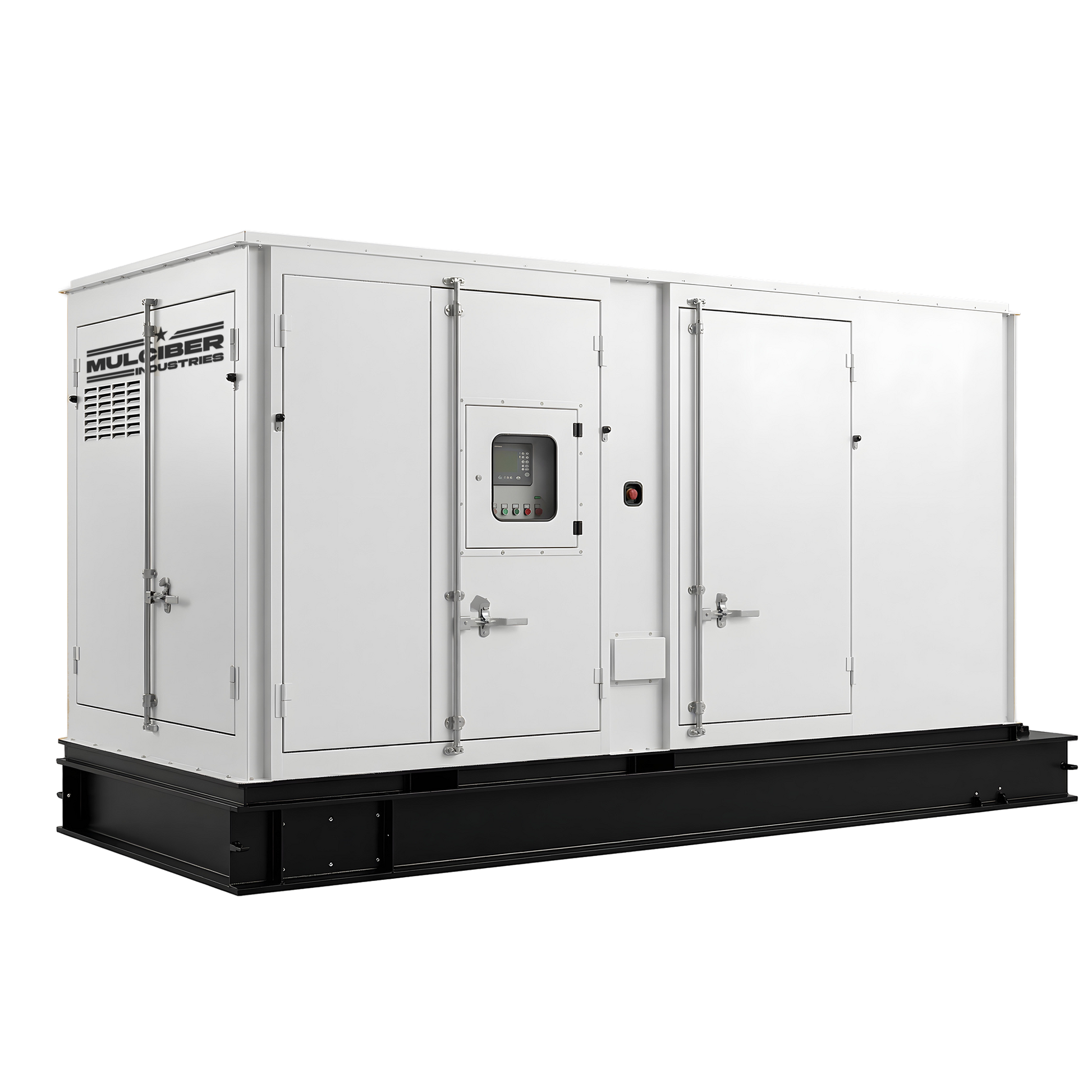

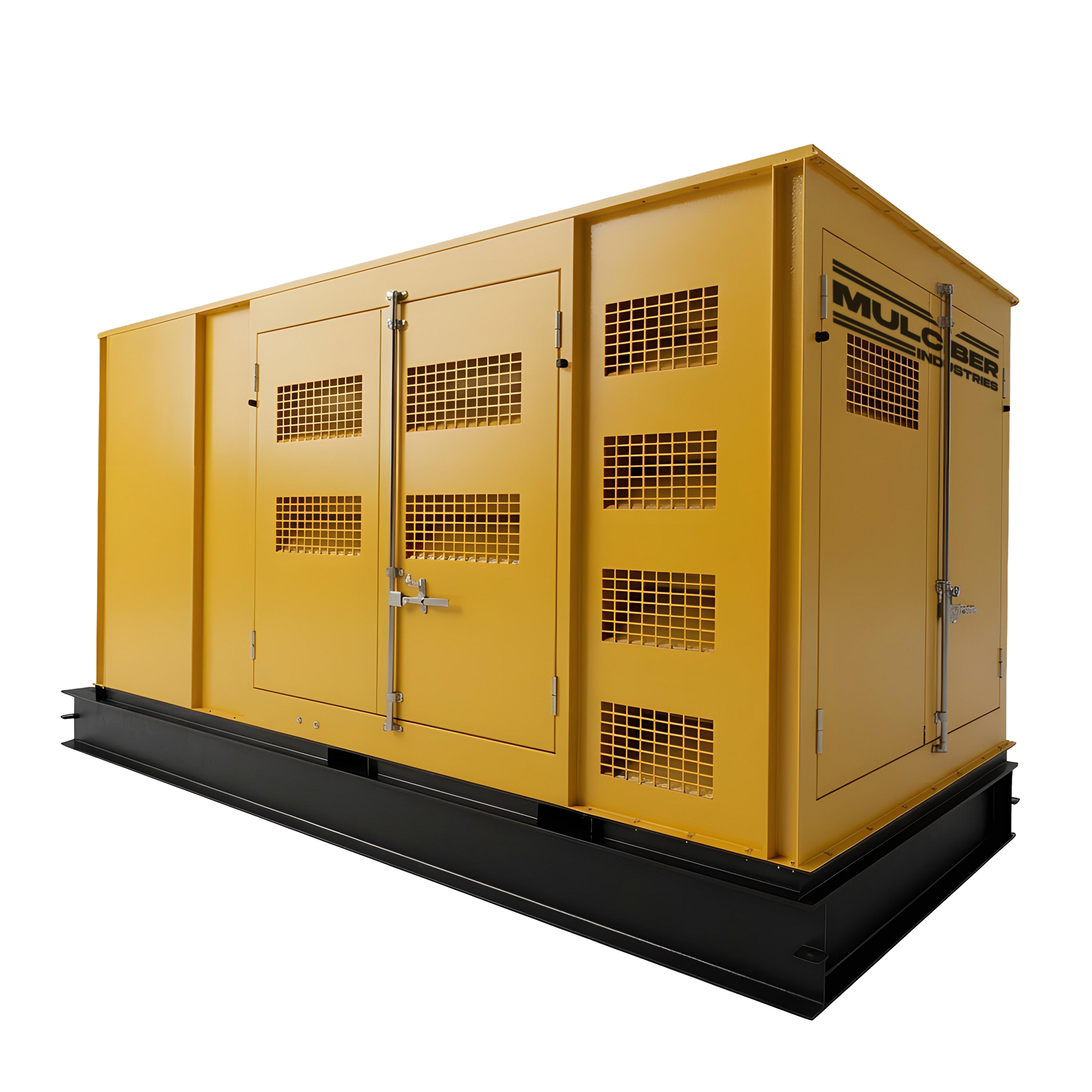

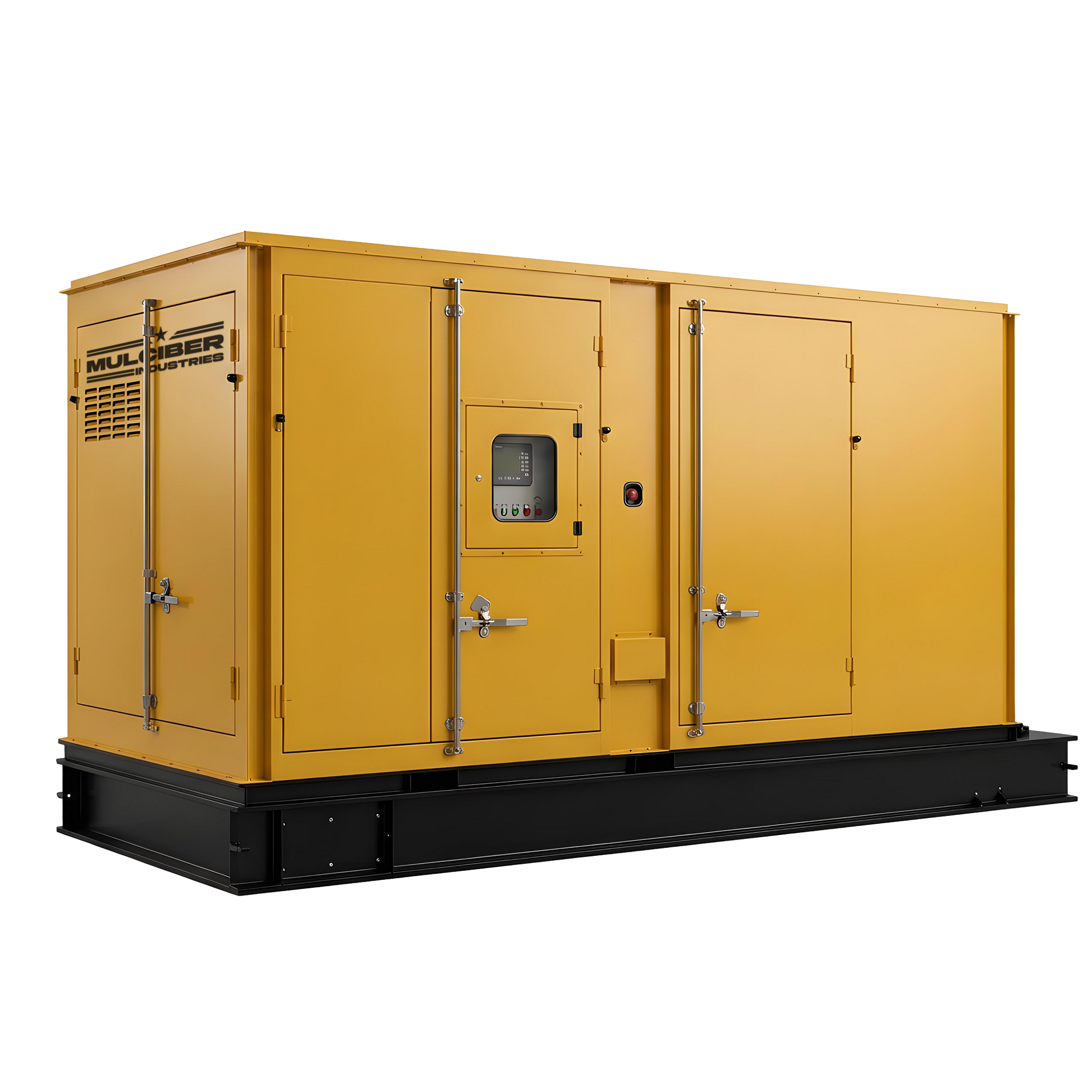

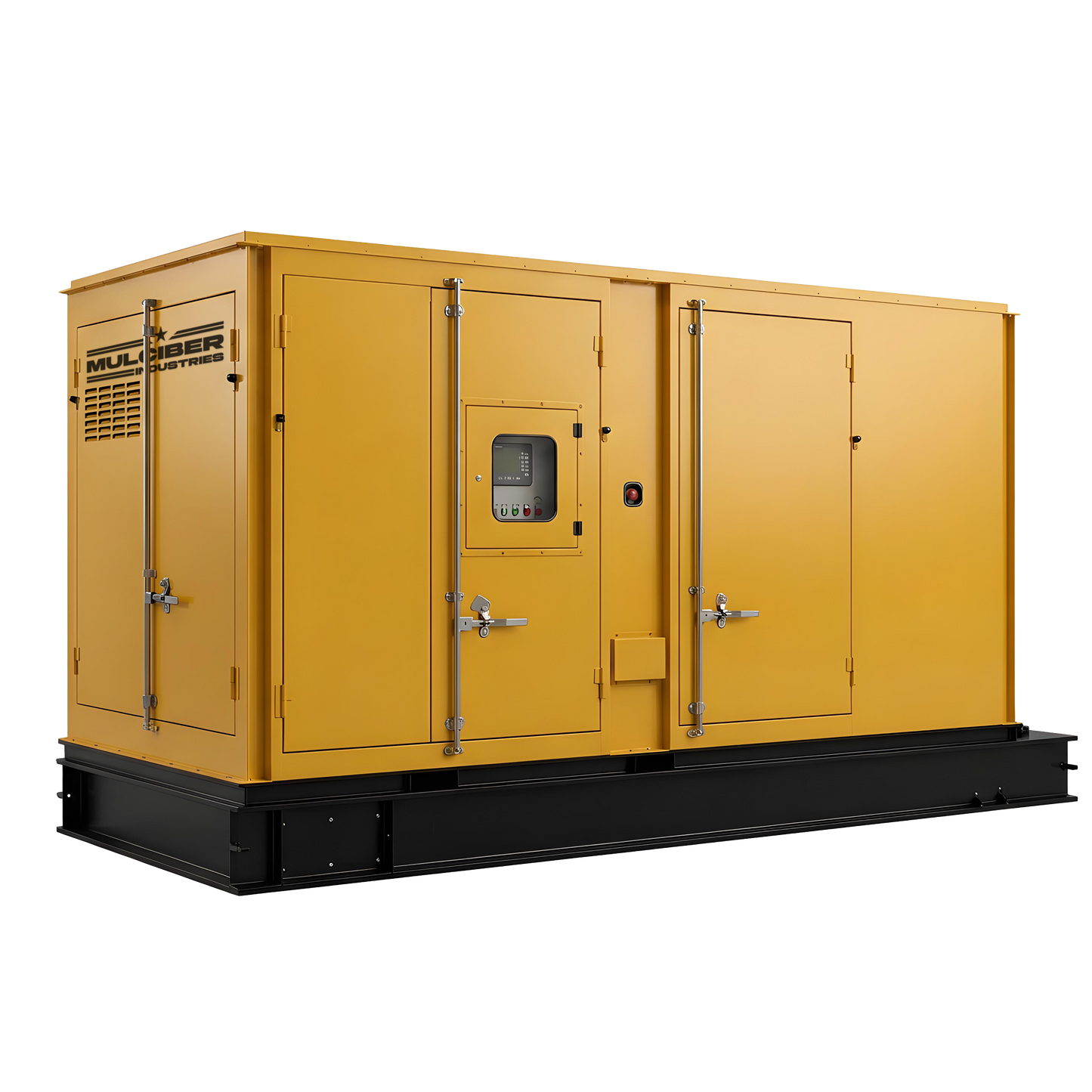

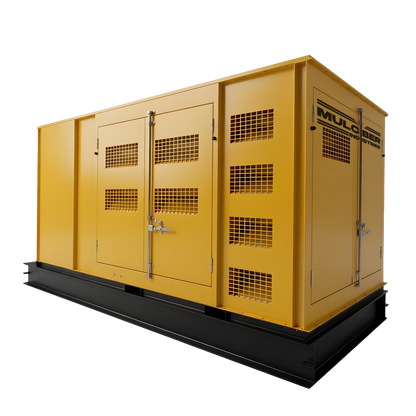

This 800 kW generator is powered by the Hyundai DP222CBS, a 21.9 L turbocharged & aftercooled diesel engine engineered for dependable backup power, low operating stress, and long term serviceability. Hyundai engines are built for demanding commercial and industrial environments with established parts and service support across North America and internationally.
The alternator is a Stamford S6L1D-C brushless unit rated for 825 kW, coupled with a Deepsea DSE digital controller providing automated monitoring and fault protection. The genset is delivered in a soundproof weatherproof enclosure with an 8 hour dual wall base fuel tank, integrated Webasto style coolant heater, and 24V electric start system.
Monitoring
- V
- A
- Hz
- kW
- kVA
- kVAr
- PF
Communications
- USB
- RS232
- RS485
- CAN Bus (J1939)
- Ethernet (via expansion)
- DSE2548 Remote Annunciator, DSEWebNet, SCADA via Modbus
- CAN & MPU
Protection
- kW overload protection
- Reverse power protection
- Unbalanced load protection
- Independent Earth Fault trip
- Charge alternator failure alarm
- Low fuel alarm
- 250 Events with Date/Time Stamp
- cULus Listed, CE Marked
Prime Power Rating
Continuous operation at variable load with no annual hour restriction. Permits 10% overload capacity for one hour in every twelve hour cycle where supported by the engine rating and site conditions.
Standby Power Rating
Emergency backup operation at variable load during utility outage. Rated for the duration of the power interruption. No overload permitted.
